Game Event Behavior

Define what happens when an event fires. Unlike traditional events that execute blindly, this system lets you attach conditions, delays, loops, and visual actions directly to the event asset itself.

---

🚀 Opening the Behavior Window

Access from the Game Event Editor:

Game Event Editor → Click Behavior Button (colored pill) on any event row

Button Color States:

Color	Icon	Meaning	Details
🟢 Green	✓	Configured (Inspector)	Has UnityEvent actions in Manager
🔵 Blue	▶	Runtime Active (Play Mode)	Has code-based listeners via AddListener()
🟡 Orange	⚠	Not Configured	No actions or listeners

Button Label: Shows event type signature (e.g., <void>, <int>, <GameObject, DamageInfo>)

---

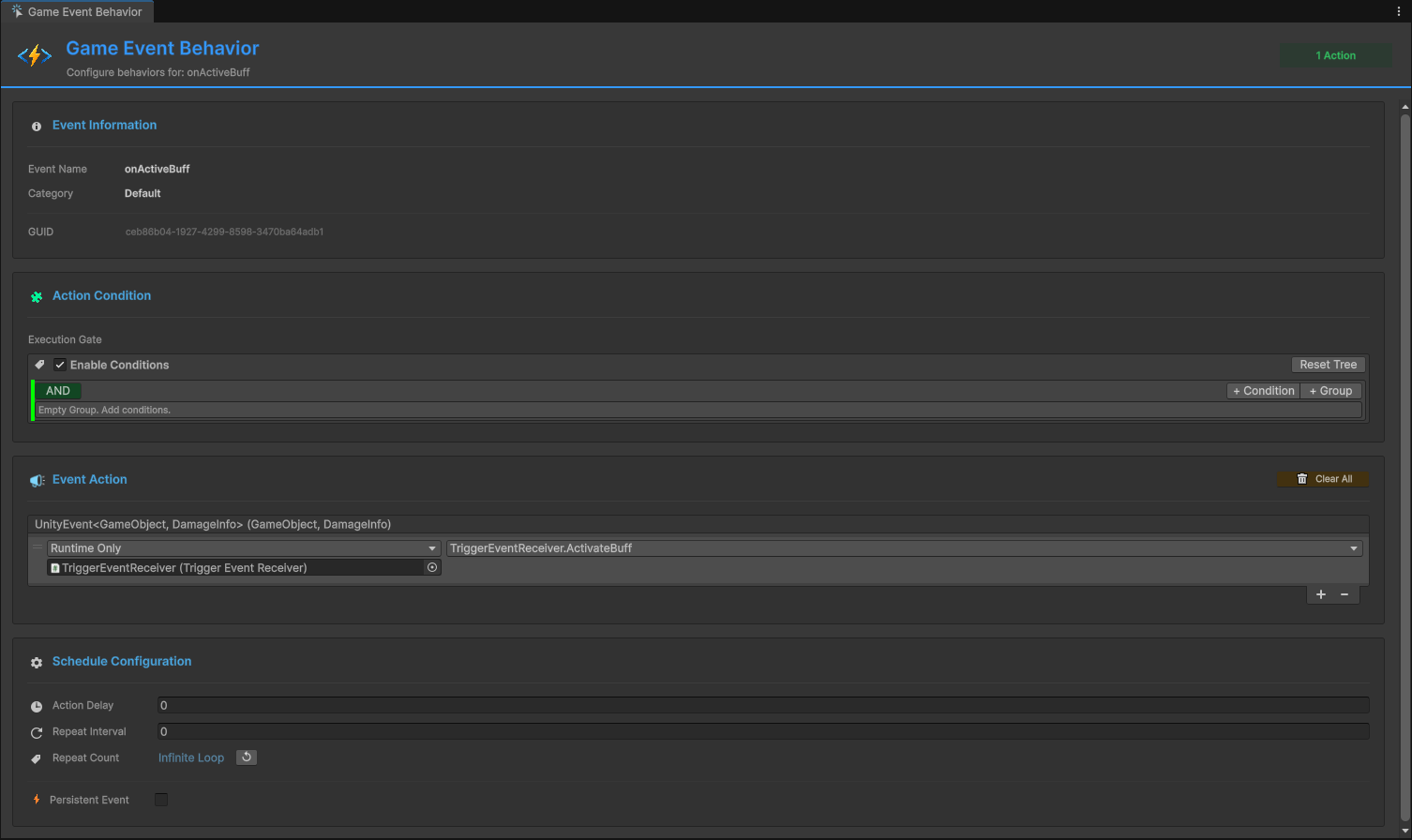

📋 Window Overview

The Behavior Window has four main sections:

1. Event Information - Identity confirmation (name, category, GUID)
2. Action Condition - Visual logic tree (execution gate)
3. Event Action - UnityEvent callbacks (what to execute)
4. Schedule Configuration - Timing controls (delays, loops, persistence)

---

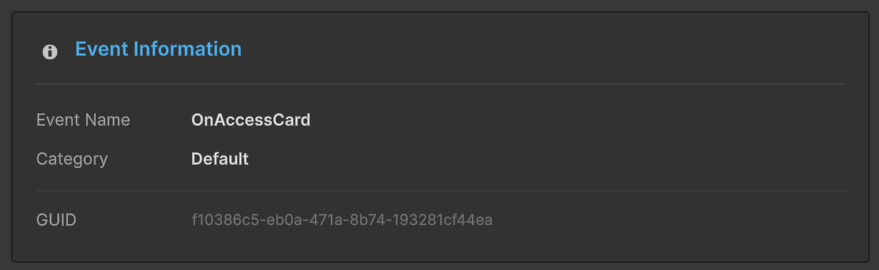

1️⃣ Event Information

Read-only summary confirming you're editing the correct event.

Displayed Data:

• Event Name: Asset name
• Category: Organizational group
• GUID: Unique internal identifier (preserved across renames)

Why GUID Matters

The GUID ensures references stay intact even if you rename the event. This is why safe renaming works in the Editor!

---

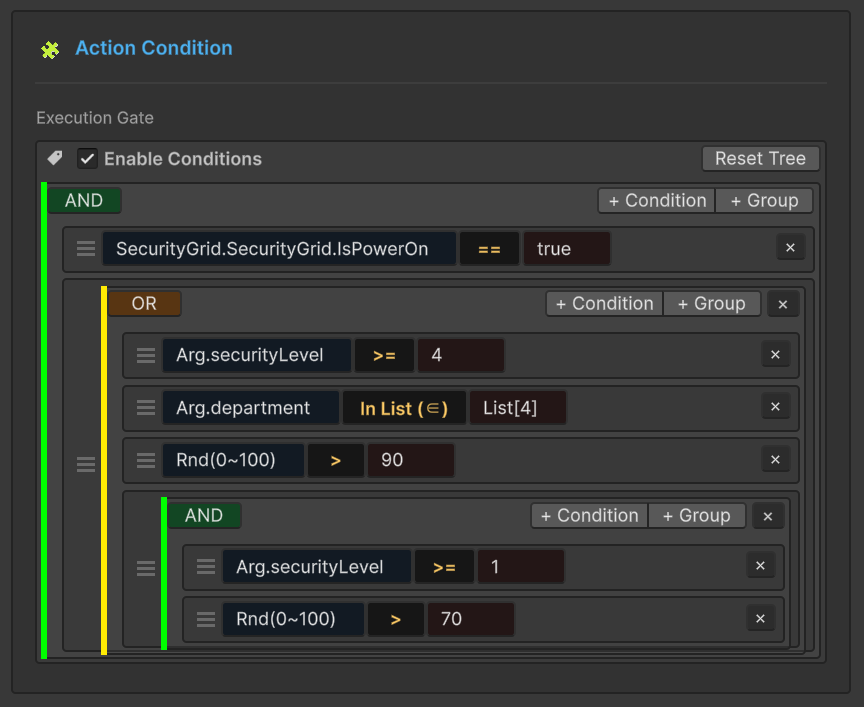

2️⃣ Action Condition (Execution Gate)

The Logic Engine: Actions only execute if these conditions evaluate to TRUE.

What It Does

Controls whether actions execute based on runtime values:

Visual Logic Tree

Build complex boolean logic without code using:

• Groups: Combine conditions with AND/OR logic
• Comparisons: Individual checks (e.g., Health < 20)
• Nesting: Groups inside groups (unlimited depth)

Performance

Zero Reflection Overhead

Conditions compile to Expression Trees at initialization. They run as fast as hand-written C# code!

Learn More

The Visual Condition Tree is a powerful system with many features:

• 4 Source Types: Event Argument, Scene Type, Random, Constant
• 10 Comparison Operators: Numeric, String, Collection checks
• Bool Method Support: Use custom bool methods as conditions
• Drag & Drop Reordering: Organize logic visually
• Type Validation: Auto-detects incompatible comparisons

📖 Complete Guide: Visual Condition Tree

---

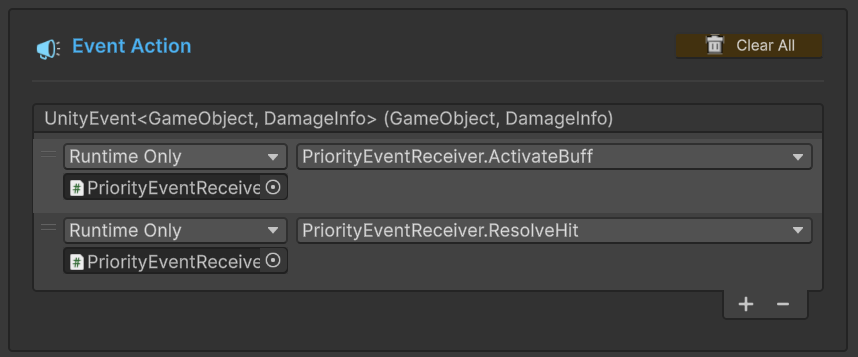

3️⃣ Event Action (Callback Layer)

The Action defines the Unity callbacks that execute once an event is triggered and all conditions are met.

🧩 Understanding the UnityEvent Field

The system leverages Unity's native UnityEvent architecture, ensuring seamless integration with your existing MonoBehaviours and UI components.

---

🔘 For Parameterless Events (GameEvent)

Standard trigger-only logic.

Type	Backend Field	Compatibility
Logic	UnityEvent (void)	🟢 Accepts any zero-parameter method.

Example: OnGameStart ➔ AudioManager.PlayBGM(), UI.FadeIn()

---

🔢 For Single Parameter Events (GameEvent<T>)

Payload-driven logic. Passes data directly to the listener.

Type	Backend Field	Compatibility
Logic	UnityEvent<T>	🟡 Accepts methods with one parameter of type T.

Example: OnHealthChanged(float) ➔ HealthBar.UpdateFill(float)

---

👥 For Sender Events (GameEvent<TSender, TArgs>)

Context-aware logic. Passes both the source and the data payload.

Type	Backend Field	Compatibility
Logic	UnityEvent<TSender, TArgs>	🔵 Accepts methods with two parameters.

Example: OnDamage(GameObject, int) ➔ VFXManager.SpawnAt(GameObject.pos), Popup.Show(int)

Native Integration

Because we use Native UnityEvents, you can assign listeners directly in the Inspector or via code using AddListener(). It supports both Static and Dynamic calls.

Signature Matching

The inspector UI will automatically filter the method list to only show functions that match the event's signature, preventing runtime errors.

---

➕ Adding Actions (Workflow)

Follow these three simple steps to connect your logic via the Unity Inspector.

1️⃣ Assign Target Object

Drag and drop the GameObject or Component that contains your logic into the Object slot.

• 🖱️ Action: Drag from Hierarchy ➔ Drop into the empty slot.
• 📦 Result: The field now references the specific instance of your script.

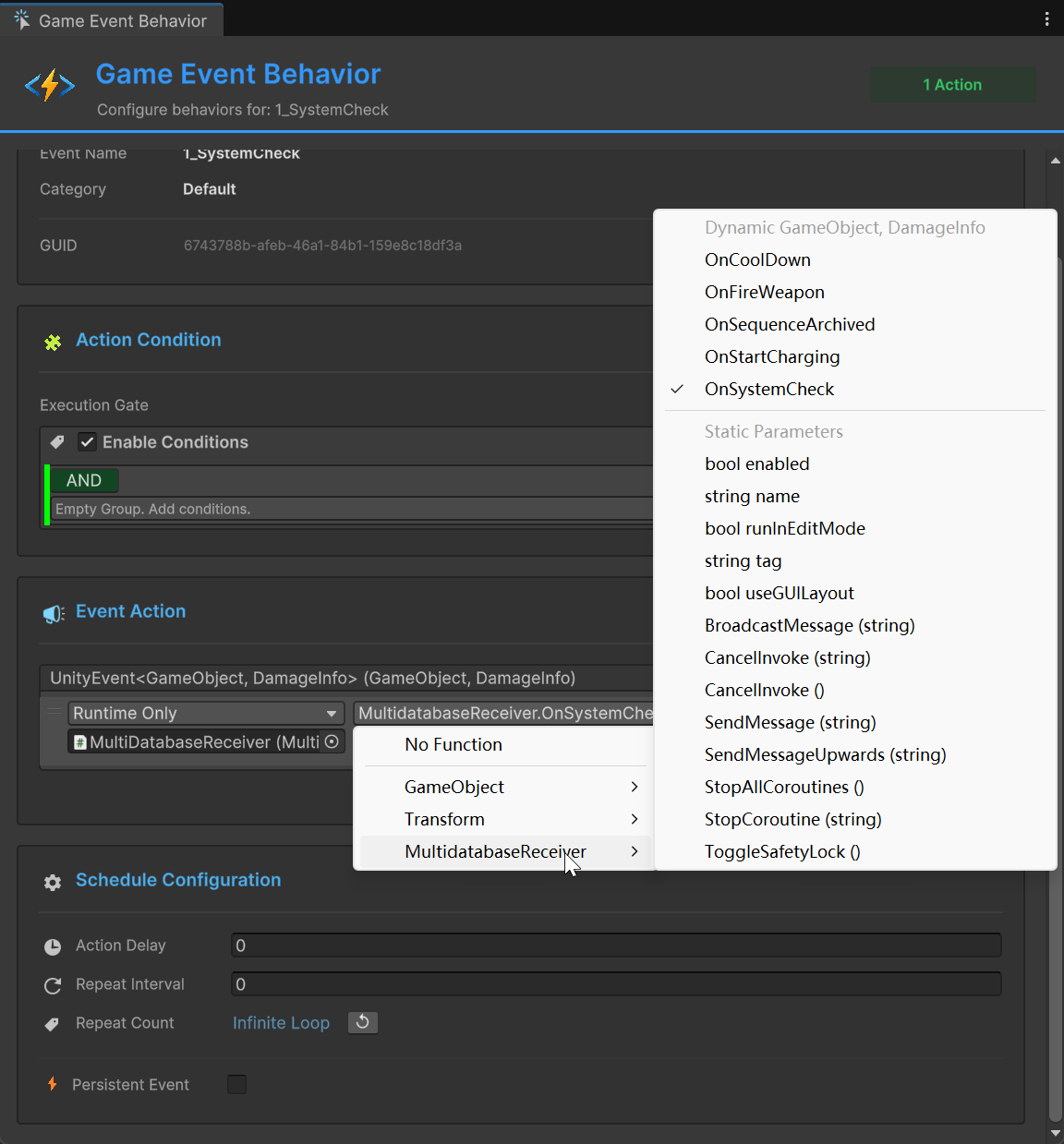

2️⃣ Select Callback Method

Click the Function Dropdown to browse all public methods available on the assigned object.

• 🔍 Action: Click No Function ➔ Navigate to your Script/Component.
• ⚡ Tip: Only methods that match the Event Signature (e.g., void, int) will appear at the top for easy selection.

3️⃣ Define Parameter Mapping

Decide whether to use the event's live data or a fixed value.

• ⚖️ Dynamic Call: Uses the runtime value sent by the event (e.g., the actual damage dealt).
• ⚙️ Static Parameters: Uses a fixed value you define manually in the Inspector.

---

💡 Dynamic vs. Static: Which one to choose?

Mode	Visual Icon	Best For...
Dynamic	🚀	Real-time data (e.g., Updating a Health Bar with current HP).
Static	📌	Fixed triggers (e.g., Logging "Button Clicked" to the console).

Pro Tip

In the dropdown, Dynamic methods are always listed at the top of the menu. If you don't see your method there, check if the parameter types match exactly!

---

Dynamic vs Static Functions

Dynamic (with event data):

// Receives event parameter(s)
public void TakeDamage(float amount) {
    health -= amount;
}

// For Sender events
public void OnDamageReceived(GameObject attacker, DamageInfo info) {
    // Use both sender and args
}

Static (ignores event data):

// No parameters needed
public void PlaySound() {
    audioSource.Play();
}

When to Use Each:

Use Dynamic When	Use Static When
You need the event's data	Just need notification
Processing float/int values	Playing sounds/effects
Checking sender reference	Triggering animations
Data-driven reactions	State changes

---

Multiple Actions & Priority

Add Multiple: Click + repeatedly to add more actions.

Execution Order: Top to bottom.

Reordering: Drag the ☰ handle on the left of each action.

Example:

📜 LogDamageEvent() ➔
    🥇 First (Metadata/Logging)
🎵 PlayHitSound() ➔
    🥈 Second (Audio/VFX Feedback)
📊 UpdateHealthBar(float) ➔
    🥉 Third (UI/Visual Representation)
🏁 CheckDeathCondition() ➔
    🏆 Final (Game State Logic)

---

Clear All Actions

Click "Clear All" button (top-right) to remove all actions at once.

⚠️ Shows confirmation: "Are you sure?"

---

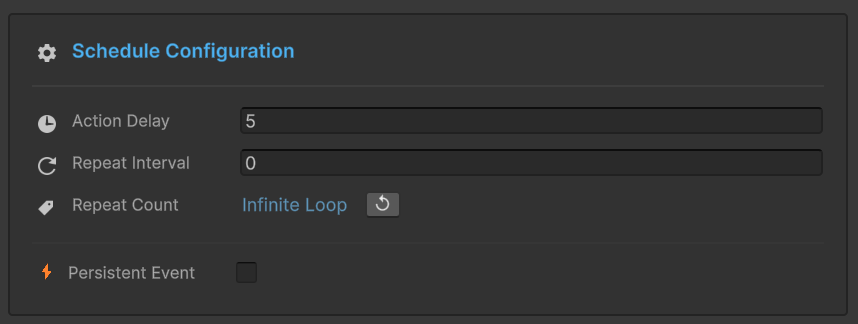

4️⃣ Schedule Configuration

The Schedule layer determines when and how often your actions are executed after an event is raised.

⏱️ Action Delay

Action Delay

Time Offset. Introduces a gap between the event trigger and the actual execution.

• 🕒 Value: float (Seconds)
• 🎯 Purpose: Synchronize with animations, VFX, or delayed game logic.

How It Works:

1. 🔔 Event Raised ➔ The signal is received.
2. ⏳ Delaying ➔ System waits for the specified X seconds.
3. 🔍 Condition Check ➔ Re-validates conditions after the wait.
4. 🚀 Execution ➔ Actions fire only if conditions still pass.

🔄 Repeat Interval

Repeat Interval

Automatic Looping. Enables the event to re-fire periodically without manual intervention.

• 🕒 Parameter: float (Seconds)
• 🔄 Logic: Determines the "tick rate" of the repeat cycle.

Value Mapping:

• 0.0s ➔ 🚫 Disabled (Single-shot execution)
• > 0s ➔ 🔁 Active Loop (Executes every X seconds)

Interaction with Delay

If both Delay and Interval are set, the first execution respects the Delay, and subsequent repeats follow the Interval.

🔢 Repeat Count

Repeat Count

Lifecycle Control. Limits the number of times an event can repeat.

Configuration Guide:

Value	Behavior	Total Executions
0	No Repeats	1 (Initial only)
N	Finite Loop	1 + N
-1	Infinite Loop ♾️	Until stopped/destroyed

UI Indicator: When set to -1, a ↺ Reset button appears. Click it to quickly revert the count back to 1.

🛡️ Persistent Event

Persistent Event

Scene Survival. Determines if the event object survives when a new Unity scene is loaded.

🔳 Unchecked (Default): Event is destroyed on scene load (Standard behavior).

☑️ Checked: Behaves like DontDestroyOnLoad.

Best Use Cases:

✅ Use Persistent For	❌ Don't Use For
🎵 Global BGM Manager	🏰 Level-Specific Puzzles
💾 Save/Load System	👾 Scene-Specific AI Pathing
🏆 Achievement Trackers	🖼️ Local Menu Animations
🌐 Multiplayer State	🔦 Temporary Room Lighting

⚠️ Critical: Dependency Injection

Persistent events cannot maintain references to scene-specific objects after a transition. You must re-bind new scene objects to the persistent event via Dependency Injection or a Service Locator after OnSceneLoaded.

---

❓ Troubleshooting

Actions Not Executing

Problem: Event fires but nothing happens.

Checklist:

✅ Check Conditions:

1. Are conditions enabled? (toggle in condition section)
2. Do conditions evaluate to TRUE?
3. Test condition logic - see Visual Condition Tree guide
4. Add Debug.Log() to verify values

✅ Check Actions:

1. Is UnityEvent field empty? Add actions!
2. Is target GameObject destroyed?
3. Is target Component disabled?
4. Check Console for errors

✅ Check Schedule:

1. Is Action Delay too long?
2. Is Repeat Interval causing confusion?
3. Is event Persistent when it shouldn't be?

---

"Field Not Found" Warning

Problem: Field 'IntGameEventAction' not found.

Cause: Event type missing its binding code.

Solution:

Click "Force Rebuild All (Fix Missing Bindings)" button.

This regenerates all binding fields:

Assets/TinyGiantsData/GameEventSystem/CodeGen/Basic/
└─ IntGameEvent.cs (regenerated with binding field)

After Compilation: Reopen Behavior Window.

---

Actions Fire Multiple Times

Problem: Actions execute more than expected.

Common Causes:

Cause 1: Repeat Settings

Check:
- Repeat Interval > 0?
- Repeat Count > 0?

If yes, event is looping (intentional or accidental)

Cause 2: Multiple Event Raises

Event fires multiple times in code:
  OnHealthChanged.Raise(newHealth);  ← Called repeatedly

Solution: Ensure event only raises when needed

Cause 3: Multiple Listeners

Same action added multiple times in UnityEvent

Solution: Check action list, remove duplicates

---

Next Steps

Now that you understand event behaviors, explore the Visual Condition Tree to master advanced conditional logic. Or jump to Flow Editor to build event orchestrations!
