Visual Condition Tree

Build complex boolean logic visually to control whether event actions should execute. Create sophisticated runtime checks through an intuitive interface—no coding required.

🎯 Overview

The Visual Condition Tree is a logic gate system that evaluates runtime conditions before executing event actions.

The Problem It Solves

Traditional Approach (scattered logic):

// Logic buried in scripts, hard to modify
if (damageInfo.amount > 20 &&
    (damageInfo.isCritical || damageInfo.type == DamageType.Fire) &&
    playerController.Health < 50 &&
    gameManager.IsInCombat()) {
    // Execute actions
}

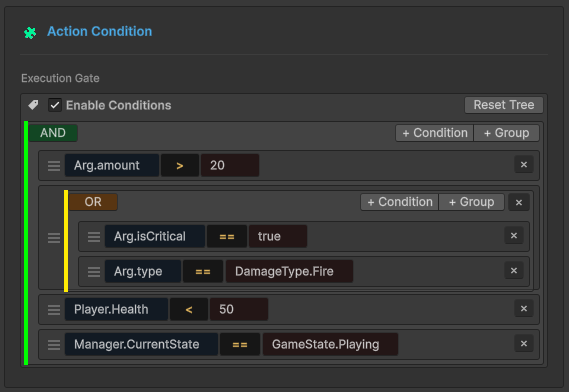

Visual Approach:

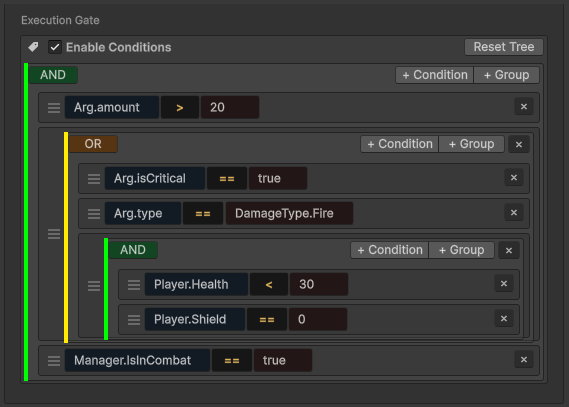

Visual Condition Tree

Build an example

Event: OnPlayerDamaged

Event Types:

GameEvent<GameObject, DamageInfo> (GameObject sender)
GameEvent<PlayerStats, DamageInfo> (Custom sender)

Data Structures:

// Damage type enumeration
public enum DamageType {
    Physical,
    Fire,
    Void
}

// Damage information payload
public class DamageInfo {
    public float amount;           // Damage value
    public bool isCritical;        // Critical hit flag
    public DamageType type;        // Damage type
    public Vector3 hitPoint;       // Impact location
    public string attacker;        // Attacker name
}

// Custom sender type (alternative to GameObject)
public class PlayerStats {
    public string playerName;
    public int level;
    public int factionId;
}

Goal: Trigger warning effects when player takes significant damage under specific conditions.

Key Benefits

Feature	Benefit
🎨 Visual Building	Designers create logic without code
🚀 High Performance	Compiles to Expression Trees (zero reflection)
🔄 Reusable	Same condition applies to all event actions
🧪 Live Testing	Tweak values in Inspector, see results immediately
🔒 Type-Safe	Auto-validates type compatibility

🏗️ Tree Structure

The condition tree is built from two node types:

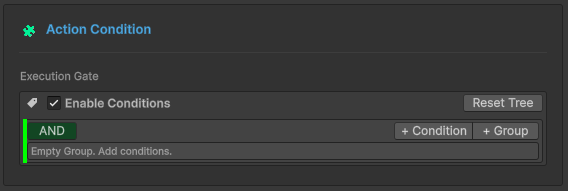

Node Types

🌳 Group Nodes

Combine multiple conditions using AND/OR logic.

Logic Types:

AND Logic
OR Logic

All child conditions must evaluate to TRUE.

Visual: 🟢 Green border

Use: "Must satisfy ALL requirements"

Toggle Logic: Click the logic button (AND/OR) to switch.

Nesting: Groups can contain other groups—build complex logic with unlimited depth.

Add Nodes: Use + Condition or + Group buttons on each group.

⚖️ Comparison Nodes

Comparison Nodes are the fundamental building blocks of your event logic. Each node performs a single boolean check (True/False) to determine if the event actions should proceed.

🏗️ Anatomy of a Comparison

Every node follows a standard tripartite structure, making complex logic easy to read at a glance.

[ 🟦 Source(Left Operand) ] [ Operator ] [ 🟧 Target (Right Operand) ]

Practical Example: Imagine an event that only triggers if a hit is powerful enough: Argument.amount > 20.0

🔍 Source: Argument.amount — The raw damage value passed by the GameEvent<float>
📐 Operator: > — The logical rule (Greater Than)
🎯 Target: 20.0 — The constant threshold or another variable to compare against

👓 View Modes

The editor UI adapts to your needs, balancing readability with precision control.

View Mode	Visual Style	Best For...
📖 Collapsed	Summary Text (e.g., Health < 50)	Quick overview of complex logic chains.
🛠️ Expanded	Detailed Editor (Dropdowns, Fields)	Modifying specific parameters and sources.

Interaction Hint

Simply Click on any comparison block to toggle between these two views. This allows you to keep your workspace clean while retaining the ability to deep-dive into settings.

📝 Structure Configuration

Details

📌 Source

What to compare: The left operand of your boolean expression.

Configure what value to check by selecting a Source Type:

Event Argument
Scene Type
Random Type

🧬 Event Argument (Data Payload)

The Argument system allows you to drill down into the event's data payload to extract specific values for conditions and actions.

Availability

Data access is exclusive to typed events: GameEvent<T> or GameEvent<TSender, TArgs>.

🔢 Single Parameter Events

Signature: GameEvent<DamageInfo>

When an event carries a single object, you can access the object itself or any of its public members.

Data Structure Example:

📦 (this Argument)      ➔ Full DamageInfo object
├── 🔢 amount           ➔ float
├── ✅ isCritical       ➔ bool
├── 🏷️ type             ➔ DamageType (Enum)
├── 📍 hitPoint         ➔ Vector3
└── 👤 attacker         ➔ string

👥 Sender Events (Context-Aware)

Sender events provide two distinct roots for data access: Sender (Who) and Argument (What).

🎮 Case A: GameObject Sender

Signature: GameEvent<GameObject, DamageInfo>

Root	Path Example	Data Type
Sender	Sender.Transform.position	Vector3
Argument	Argument.amount	float

Visual Hierarchy:

👥 Sender
   ├── 🆔 tag           ➔ string
   ├── 🟢 activeSelf    ➔ bool
   └── 📐 Transform
       ├── 📍 position  ➔ Vector3
       └── 📂 childCount➔ int
🔢 Argument
   ├── 🔢 amount        ➔ float
   └── ✅ isCritical    ➔ bool

🛡️ Case B: Custom C# Sender (Advanced)

Signature: GameEvent<PlayerStats, DamageInfo>

🚀 Why it's special: Unlike traditional systems, you are not tied to GameObjects. Use any Pure C# Class as a sender for decoupled, logic-first architecture.

💎 Pure Logic — Works with non-MonoBehaviour classes.
🌐 Network Ready — Ideal for PlayerData or NetworkAgent sync.
🤖 AI Agents — Track internal state without scene dependencies.

🧭 Deep Property Access

Precision Navigation. Navigate nested structures up to 5 levels deep with high-performance reflection.

Example: Directional Check

Path: Argument.hitPoint.normalized.x
Condition: > 0.5
Result: 🎯 "Hit came from the right side."

Breadcrumb Logic: Argument (DamageInfo) ➔ hitPoint (Vector3) ➔ normalized (Vector3) ➔ x (float)

📋 Supported Types

The system automatically support below types:

Category	Supported Types
Primitives	int, float, double, long, bool, string
Math	Vector2, Vector3, Quaternion, Color
Unity	GameObject, Transform, Component references
Logic	Enums (with dropdowns), [Serializable] C# Classes

Pro Tip: Custom Classes

Any public Field or Property in a [Serializable] class is automatically exposed in the deep-link picker.

🎬 Scene Type

Access runtime data from GameObjects or Components in the scene.

How to Use

Step 1: Drag GameObject or Component from Hierarchy into the object field.

Step 2: Click "Select Property..." to browse available members.

GameObject Example

Drag PlayerController GameObject:

📦 GameObject (Instance)
├─ 📦 (this GameObject)    ➔ The reference itself
├─ ✅ activeSelf           ➔ bool
├─ 🔤 tag                  ➔ string
└─ 🔢 layer                ➔ int

📐 Transform (Component)
├─ 📍 position             ➔ Vector3
├─ 📏 localScale           ➔ Vector3
└─ 📂 childCount           ➔ int

🧩 PlayerController (Script)
├─ 🔢 Health               ➔ float
├─ 🛡️ Shield               ➔ float
├─ 🏅 Level                ➔ int
├─ ✅ HasFireResistance    ➔ bool
│
├─ ⚡ IsInDangerZone()      ➔ bool (Method)
└─ ⚡ IsCriticallyWounded() ➔ bool (Method)

Usage:

Player.Health < 50                  → Health check
Player.Level >= 10                  → Level requirement
Player.IsInDangerZone() == true     → Complex check via method

Bool Method Support ✨

Zero-parameter methods returning bool appear in the dropdown!

Example:

// In your component
public bool IsInDangerZone() {
    return Health < 20 && Shield == 0 && !IsInvincible;
}

In Condition Tree:

Player.IsInDangerZone() == true

This encapsulates complex logic in a single method call instead of building it visually.

Component Example

Drag GameManager Component:

🏛️ GameManager (Global System)
├─ 🔄 CurrentState        ➔ GameState (Enum)
├─ 🌊 CurrentWave         ➔ int
├─ 🏅 DifficultyLevel     ➔ int
│
├─ ⚡ IsInCombat()         ➔ bool (Method)
└─ ⚡ IsHardMode()         ➔ bool (Method)

Usage:

GameManager.CurrentState == Playing
GameManager.IsInCombat() == true
GameManager.DifficultyLevel >= 3

Important Limitation

⚠️ Scene Type requires objects to exist at scene load time.

✅ Works: Objects in scene hierarchy (exist at initialization)
❌ Fails: Runtime-instantiated objects (don't exist yet)

Solution: Use Event Argument for runtime objects

🎲 Random Type

Purpose: Generate random values at execution time.

Two Modes

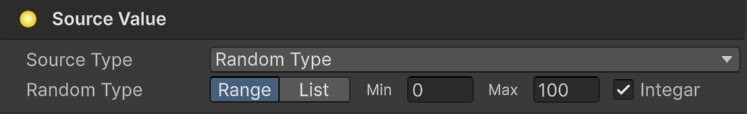

Mode 1: Range

Generate random number within bounds.

Visual Condition Tree

Configuration:

Min: Lower bound
Max: Upper bound
Integer: Check for whole numbers, uncheck for decimals

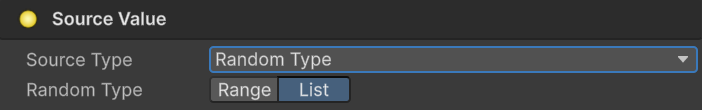

Mode 2: List

Pick random item from predefined values.

Visual Condition Tree

Configuration:

Data Type: Choose type (int, float, string, bool, etc.)
List Items: Add/remove values with +/- buttons

Use Cases

Critical Hit Chance:

Random(0~100) > 90  → 10% chance

Damage Variance:

Random(0~10) → Add random bonus damage

Dynamic Events:

Random List[Easy, Normal, Hard] → Randomize difficulty

Details

📌 Operator

How to compare: The logic between Source and Target.

📐 Available Operators

Numeric (6)

For numbers (int, float, double, long):

Operator	Symbol	Example
Equals	`==`	`Health == 100`
Not Equals	`!=`	`Health != 0`
Greater	`>`	`Damage > 20`
Less	`<`	`Health < 50`
Greater Or Equal	`>=`	`Level >= 10`
Less Or Equal	`<=`	`Shield <= 0`

Auto-Conversion: Compatible numeric types convert automatically (int ↔ float).

String (4)

For text values:

Operator	Symbol	Example
Equals	`==`	`Name == "Hero"`
Not Equals	`!=`	`Tag != "Enemy"`
Starts With	`Starts With`	`Name Starts With "Player_"`
Ends With	`Ends With`	`File Ends With ".png"`
Contains	`Contains (⊃)`	`Message Contains "error"`

⚠️ Case-sensitive: "Hero" ≠ "hero"

Enum Support

Full enumeration support with dropdown selection!

Example:

public enum DamageType { Physical, Fire, Void }

In Condition Tree:

Source: Argument.type (DamageType)
Operator: ==
Target: DamageType.Fire (dropdown shows Physical/Fire/Void)

With Lists:

Argument.type In List [Fire, Void]
Result: TRUE if type is DamageType.Fire OR DamageType.Void

Supported Operators: ==, !=, In List (∈)

Collection (1)

Check list/array membership:

Operator	Symbol	Purpose
In List	`∈`	Check if value exists in list

Structure:

Source: Single value
Operator: In List (∈)
Target: List/Array (matching type)

Examples:

Argument.attacker In List ["Dragon", "Demon", "Lich"]
Player.Level In List [10, 20, 30, 40, 50]
Argument.type In List [Fire, Void]

📌 Target

Event Argument
Scene Type
Random Type
Constant

🧬 Event Argument (Data Payload)

Same as Source

Like Source, please refer to the relevant configuration introduction in Source for specific details

📌 Constant

Fixed comparison value.

Note: Only available as Target (right side), not Source.

Two Modes

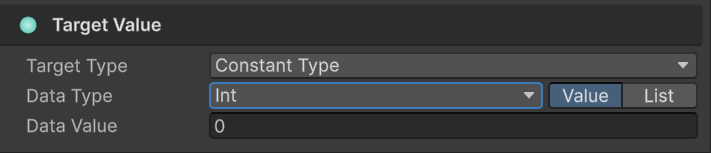

Mode 1: Single Value

Enter one fixed value.

Visual Condition Tree

Data Types: Int, Float, Double, String, Bool

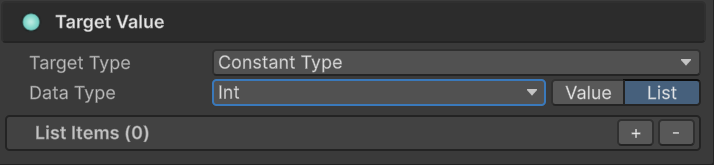

Mode 2: List

Define multiple acceptable values (for "In List" operator).

Visual Condition Tree

Configuration:

Data Type: Type for all list items
+ / -: Add/remove items

Use Cases

Thresholds:

Health < 50.0

Exact Matches:

Name == "Hero"

Multiple Values:

Type In List [Fire, Void, Lightning]

Key difference

Additional support type: Constant Type**（only available for Target）**

Context-Aware

Some operators restrict target type:

Numeric operators (>, <, etc.) require single values
"In List" operator requires list types

🎨 Type Validation

The system automatically validates type compatibility.

Valid Comparisons:

✅ int == int
✅ float > int (auto-converts)
✅ string Contains string
✅ DamageType == Fire (enum)
✅ int In List<int>

Invalid Comparisons:

❌ string > int (incompatible types)
❌ bool Contains string (meaningless)
❌ float In List<string> (type mismatch)

Visual Feedback: Red outline + warning text on incompatible types.

🧩 Bool Methods vs Visual Tree

Two approaches to building conditions—when to use each?

Approach 1: Bool Methods

Best for: Complex multi-step logic.

Example:

public bool IsInDangerZone() {
    bool lowHealth = Health < 20;
    bool noShield = Shield == 0;
    bool hasEnemies = Physics.OverlapSphere(
        transform.position, 10f, enemyLayer
    ).Length > 0;

    return lowHealth && noShield && hasEnemies;
}

In Tree: Player.IsInDangerZone() == true

Pros:

Encapsulates complexity
Can use Physics, raycasts
Unit testable
Code reusable

Cons:

Requires C# coding
Designers can't modify

Approach 2: Visual Tree

Best for: Simple checks designers should control.

Example:

Pros:

No coding needed
Designer-friendly
Visual representation
Quick iteration

Cons:

Can't use Physics/algorithms
Large trees get complex

Hybrid Approach (Recommended)

Combine both for optimal results:

Guideline:

Visual Tree: Thresholds, enums, simple properties
Bool Methods: Physics queries, complex algorithms, cross-system checks

🔄 Drag & Reorder

Change execution order: Drag the handle (☰) on the left edge of any condition.

Why Order Matters:

AND Groups: Order doesn't affect result (all must pass).

OR Groups: Order affects short-circuit evaluation (stops at first TRUE).

Optimization Example:

❌ Slow:
OR Group
├─ ExpensivePhysicsCheck()  ← Runs first (slow!)
└─ SimpleBoolCheck          ← May never run

✅ Fast:
OR Group
├─ SimpleBoolCheck          ← Runs first (fast!)
└─ ExpensivePhysicsCheck()  ← Only if needed

Put cheap checks first in OR groups for better performance.

🚀 Performance

Compilation Process

One-time cost (scene load):

Visual Tree → Expression Tree → IL Code → Compiled Lambda

Runtime execution:

Event Fires → Call Compiled Lambda → Return TRUE/FALSE

Benchmark: Complex nested conditions execute in ~0.001ms (1 microsecond).

Why It's Fast

Zero Reflection: Direct compiled access like hand-written C#.

Expression Trees: System generates optimized IL code at initialization.

❌ Traditional: GetComponent() + GetField() + Invoke() per check
✅ This System: Direct property access via compiled lambda

Result: Negligible overhead even with hundreds of events firing per frame.

🧹 Tree Management

Enable/Disable: Toggle checkbox to bypass all conditions (always TRUE).
Reset Tree: Click "Reset Tree" button to clear all nodes and start fresh.
Collapse/Expand: Click comparison blocks to toggle between summary and detail views.

❓ Troubleshooting

Conditions Always Return False

Checklist:

✅ Is "Enable Conditions" toggle checked?
✅ Are there red type mismatch warnings?
✅ Are Scene Type references still valid (not destroyed)?
✅ Do bool methods return expected values? (add Debug.Log)

For Event Arguments:

Must be public field or property
Must be supported type

For Scene Types:

GameObject must exist in scene at Editor time
Component must be enabled
Property must be public
Methods must: return bool, zero parameters, public, instance (not static)

For Runtime Objects: Use Event Argument instead of Scene Type.

Changes Not Saving

Common Causes:

Multiple Behavior Windows open (close duplicates)
Script compilation during editing (wait for completion)
Unity didn't apply SerializedProperty changes (wait before closing)

📖 Where It's Used

The Visual Condition Tree system appears in two contexts:

1. Event Behaviors → Game Event Behavior

Controls whether event actions execute:

Event Fires → Check Conditions → Execute/Skip Actions

2. Flow Nodes → Flow Node Configuration (future documentation)

Controls whether flow nodes execute:

Flow Reaches Node → Check Conditions → Execute/Skip Node

Both use the exact same condition tree system.

Best Practices

Simple Checks: Use Visual Tree for thresholds, enums, basic comparisons

Complex Logic: Use Bool Methods for Physics, algorithms, multi-step checks

Optimal Approach: Combine both—visual for simple, methods for complex

Performance: Put cheap checks first in OR groups for short-circuit optimization

🎯 Overview​

The Problem It Solves​

Build an example​

Key Benefits​

🏗️ Tree Structure​

🌳 Group Nodes​

⚖️ Comparison Nodes​

🏗️ Anatomy of a Comparison​

👓 View Modes​

📝 Structure Configuration​

🧬 Event Argument (Data Payload)​

🔢 Single Parameter Events​

👥 Sender Events (Context-Aware)​

🎮 Case A: GameObject Sender​

🛡️ Case B: Custom C# Sender (Advanced)​

🧭 Deep Property Access​

📋 Supported Types​

🎬 Scene Type​

How to Use​

GameObject Example​

Bool Method Support ✨​

Component Example​

Important Limitation​

🎲 Random Type​

Two Modes​

Use Cases​

📐 Available Operators​

🧬 Event Argument (Data Payload)​

🎬 Scene Type​

🎲 Random Type​

📌 Constant​

Two Modes​

Use Cases​

🎨 Type Validation​

🧩 Bool Methods vs Visual Tree​

Approach 1: Bool Methods​

Approach 2: Visual Tree​

Hybrid Approach (Recommended)​

🔄 Drag & Reorder​

🚀 Performance​

Compilation Process​

Why It's Fast​

🧹 Tree Management​

❓ Troubleshooting​

Conditions Always Return False​

Property Not in Dropdown​

Changes Not Saving​

📖 Where It's Used​

🎯 Overview

The Problem It Solves

Build an example

Key Benefits

🏗️ Tree Structure

🌳 Group Nodes

⚖️ Comparison Nodes

🏗️ Anatomy of a Comparison

👓 View Modes

📝 Structure Configuration

🧬 Event Argument (Data Payload)

🔢 Single Parameter Events

👥 Sender Events (Context-Aware)

🎮 Case A: GameObject Sender

🛡️ Case B: Custom C# Sender (Advanced)

🧭 Deep Property Access

📋 Supported Types

🎬 Scene Type

How to Use

GameObject Example

Bool Method Support ✨

Component Example

Important Limitation

🎲 Random Type

Two Modes

Use Cases

📐 Available Operators

🧬 Event Argument (Data Payload)

🎬 Scene Type

🎲 Random Type

📌 Constant

Two Modes

Use Cases

🎨 Type Validation

🧩 Bool Methods vs Visual Tree

Approach 1: Bool Methods

Approach 2: Visual Tree

Hybrid Approach (Recommended)

🔄 Drag & Reorder

🚀 Performance

Compilation Process

Why It's Fast

🧹 Tree Management

❓ Troubleshooting

Conditions Always Return False

Property Not in Dropdown

Changes Not Saving

📖 Where It's Used
