09 Persistent Event: Surviving Scene Loads

📋 Overview

In Unity, when you load a new scene, all GameObjects (and their event listeners) from the previous scene are destroyed. Persistent Events solve this problem by storing listener bindings in a global manager that survives scene transitions—essential for global systems like music controllers, inventory managers, or achievement trackers.

💡 What You'll Learn

• The scene transition cleanup problem in Unity
• How to enable event persistence with a single checkbox
• The difference between persistent and non-persistent event behavior
• Architectural patterns for cross-scene event systems

---

🎬 Demo Scene

Assets/TinyGiants/GameEventSystem/Demo/09_PersistentEvent/09_PersistentEvent_1.unity

Scene Composition

Visual Elements:

• 🔴 Turret_A (Left) - Red turret with grey base

  • Controlled by persistent event OnTurretA
  • Has rotating head mechanism
  • Will continue working after scene reload

• 🔵 Turret_B (Right) - Blue turret with grey base

  • Controlled by non-persistent event OnTurretB
  • Identical functionality to Turret A
  • Will stop working after scene reload

• 🎯 TargetDummy - Center capsule target

  • Both turrets aim and fire at this target
  • Has Rigidbody for knockback physics

• 📋 HoloDisplay - Information panel

  • Displays explanatory text about the experiment
  • Shows persistent state information

UI Layer (Canvas):

• 🎮 Three Buttons - Bottom of the screen
  • "Fire A" (White) → Triggers PersistentEventRaiser.FireTurretA()
  • "Fire B" (White) → Triggers PersistentEventRaiser.FireTurretB()
  • "Load Scene 2" (Green) → Reloads the scene to test persistence

Game Logic Layer (Demo Scripts):

• 📤 PersistentEventRaiser - Standard scene-based raiser

  • Holds references to both events
  • Destroyed and recreated on scene reload

• 📥 PersistentEventReceiver - DontDestroyOnLoad singleton

  • Survives scene transitions
  • Holds combat logic for both turrets
  • Uses dependency injection pattern for scene references

• 🔧 Scene Setup - Dependency injection helper

  • Runs on scene load
  • Re-injects new turret references into persistent receiver
  • Enables persistent receiver to control new scene objects

---

🎮 How to Interact

The Persistence Experiment

This demo proves that persistent events maintain their bindings across scene loads while non-persistent events are cleared.

---

Step 1: Enter Play Mode

Press the Play button in Unity.

Initial State:

• Two turrets (red and blue) idle in the scene
• HoloDisplay shows explanatory text
• Console is clear

---

Step 2: Initial Functionality Test

Click "Fire A":

• 🎯 Red turret (left) rotates toward target
• 🚀 Projectile fires and travels
• 💥 On impact:
  • Orange floating text "CRIT! -500"
  • Large explosion VFX
  • Camera shake
  • Target knocked back
• 📝 Console: [Raiser] Broadcasting Command: Fire Turret A
• 📝 Console: [Receiver] Received Command A. Engaging...

Click "Fire B":

• 🎯 Blue turret (right) rotates toward target
• 🚀 Projectile fires
• 💥 On impact:
  • White floating text "-200"
  • Normal explosion VFX
  • No camera shake (weaker attack)
  • Target knocked back
• 📝 Console: [Raiser] Broadcasting Command: Fire Turret B
• 📝 Console: [Receiver] Received Command B. Engaging...

Result: ✅ Both turrets work perfectly in the initial scene.

---

Step 3: The Scene Reload (The Purge)

Click "Load Scene 2":

What Happens Behind the Scenes:

1. 🔄 Unity's SceneManager.LoadScene() is called

2. 💀 Scene Destruction Phase:

   • All scene GameObjects are destroyed:
     • ❌ Turret_A destroyed
     • ❌ Turret_B destroyed
     • ❌ TargetDummy destroyed
     • ❌ PersistentEventRaiser destroyed
   • 🗑️ GameEventManager cleans up non-persistent event listeners
     • OnTurretB listeners cleared
     • OnTurretA listeners preserved (persistent flag)

3. 🏗️ Scene Recreation Phase:

   • New Turret_A spawned
   • New Turret_B spawned
   • New TargetDummy spawned
   • New PersistentEventRaiser spawned

4. ✨ Persistent Objects:

   • ✅ PersistentEventReceiver survives (DontDestroyOnLoad)
   • ✅ Its method bindings to OnTurretA still active

5. 🔧 Dependency Injection:

   • PersistentEventSceneSetup.Start() runs
   • Calls PersistentEventReceiver.UpdateSceneReferences()
   • Injects new scene turret references into persistent receiver

Visual Changes:

• Scene briefly goes black during reload
• Turrets respawn in same positions
• UI buttons remain functional

---

Step 4: Post-Reload Survival Test

Click "Fire A" (After Reload):

What Happens:

1. 🎯 Red turret rotates and fires (works perfectly!)
2. 💥 Full combat sequence plays
3. 📝 Console: [Receiver] Received Command A. Engaging...

Why It Works:

Button → fireAEvent.Raise()
       → GameEventManager finds persistent binding
       → PersistentEventReceiver.OnFireCommandA() executes
       → Uses newly injected turret reference
       → Turret fires

Result: ✅ Persistent event survived scene reload!

---

Click "Fire B" (After Reload):

What Happens:

1. 🔇 NOTHING
2. 📝 Console: [Raiser] Broadcasting Command: Fire Turret B
3. ❌ No receiver log
4. Blue turret does not move or fire

Why It Failed:

🔘 Input: Button Click
│
🚀 Event: fireBEvent.Raise()
│
🔍 Registry: [ GameEventManager Lookup ]
│
├─❓ Result: NONE Found
│  └─ 🗑️ Reason: Bindings cleared during Scene Reload
│
🌑 Outcome: Signal Dissipated
│  └─ 👻 Result: "Lost in the void" (No receivers called)
│
📊 Status: 0 Actions Executed | ✅ System Safe (No NullRef)

Result: ❌ Non-persistent event binding was destroyed!

🔴 The Dead Event

OnTurretB listener was cleared when the scene unloaded. The event asset still exists, but its connection to PersistentEventReceiver.OnFireCommandB() is permanently broken (unless you manually re-subscribe via code).

---

🏗️ Scene Architecture

The Scene Transition Problem

In standard Unity event systems:

🖼️ Scene A: Loaded
   └─ 🔗 Listeners: Subscribed (Local Context)
│
🚚 [ Loading Scene B... ]
│
🧹 Cleanup: Memory Purged
   └─ ❌ Result: ALL listeners cleared from the registry
│
🖼️ Scene B: Active
   └─ 🌑 Status: Event is "Empty" (No receivers)

This breaks global systems that need to persist across scenes.

The Persistent Event Solution

🖼️ Scene A: Loaded
   └─ 🛡️ Listeners: Subscribed (Global Context)
│
🚚 [ Loading Scene B... ]
│
💎 Preservation: Handover Successful
   └─ ✅ Result: Bindings stored in the Global Persistent Registry
│
🖼️ Scene B: Active
   └─ 🔥 Status: Event is "Hot" (Listeners remain ready to fire)

Persistent events behave like DontDestroyOnLoad for event logic.

---

Architectural Pattern: Dependency Injection

This demo uses a sophisticated pattern to handle scene references:

The Challenge:

• PersistentEventReceiver survives (DontDestroyOnLoad)
• But turrets are destroyed and recreated each scene load
• Receiver needs references to new turret instances

The Solution:

1. Persistent Receiver holds combat logic
2. Scene Setup Script runs on each scene load
3. Setup injects new scene references into persistent receiver
4. Receiver can now control new turrets

🛡️ Persistent Layer (The "Survivor")
┃  └─ 💎 PersistentEventReceiver [Survives Scene Load]
┃        ▲
┃        ║ 💉 Dependency Injection (References Re-bound)
┃        ╚══════════════════════════════════════╗
┃                                               ║
🖼️ Scene Layer (The "Context")                  ║
┃  └─ ⚙️ PersistentEventSceneSetup [Recreated]  ║
┃        │                                      ║
┃        └── 🔍 Finds & Passes References ➔ ════╝
┃              │
┃              ├── 🤖 New Turret_A [Scene Instance]
┃              └── 🤖 New Turret_B [Scene Instance]

---

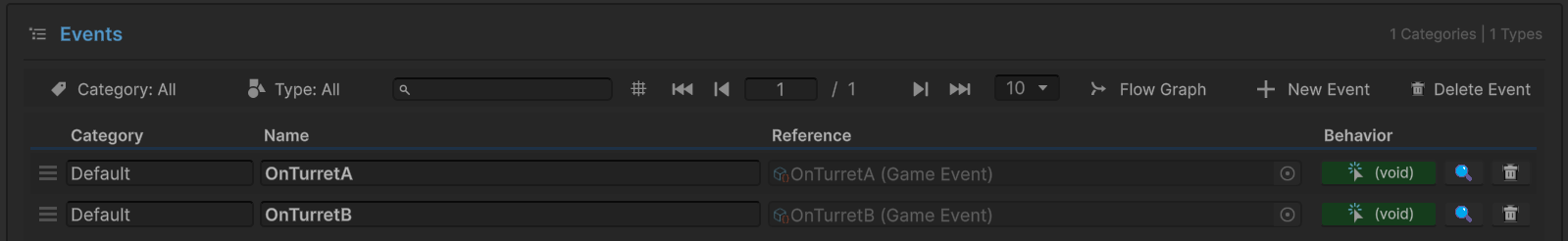

Event Definitions

Event Name	Type	Persistent Flag
OnTurretA	GameEvent (void)	✅ Checked
OnTurretB	GameEvent (void)	❌ Unchecked

Identical Events, Different Fate: Both are void events with the same configuration—except for one checkbox that determines their survival.

---

Behavior Configuration

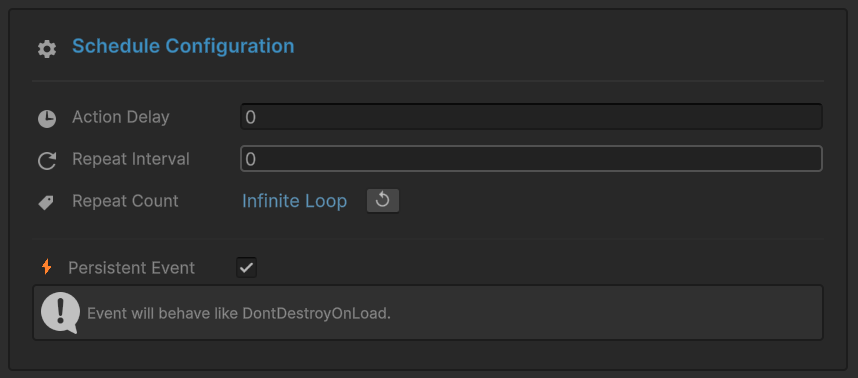

Persistent Event (OnTurretA)

Click the (void) icon for OnTurretA to open the Behavior Window:

Critical Setting:

• 💾 Persistent Event: ✅ CHECKED

Warning Message:

"Event will behave like DontDestroyOnLoad."

What This Means:

• Listener bindings stored in global persistent manager
• NOT cleared during scene transitions
• Survives until explicitly removed or game exit
• Essential for cross-scene systems

---

Non-Persistent Event (OnTurretB)

Same configuration except:

• 💾 Persistent Event: ❌ UNCHECKED

Result:

• Standard Unity lifecycle
• Listeners cleared on scene unload
• Must re-subscribe if needed in new scene

---

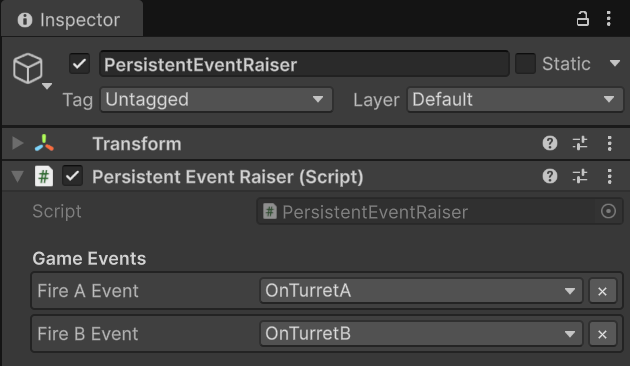

Sender Setup (PersistentEventRaiser)

Select the PersistentEventRaiser GameObject:

Game Events:

• Fire A Event: OnTurretA (Persistent)
  • Tooltip: "Checked 'Persistent Event' in Editor"
• Fire B Event: OnTurretB (Non-Persistent)
  • Tooltip: "Unchecked 'Persistent Event' in Editor"

Lifecycle:

• ❌ Destroyed on scene reload
• ✅ Recreated with new scene
• Holds new event references (assets are persistent ScriptableObjects)

---

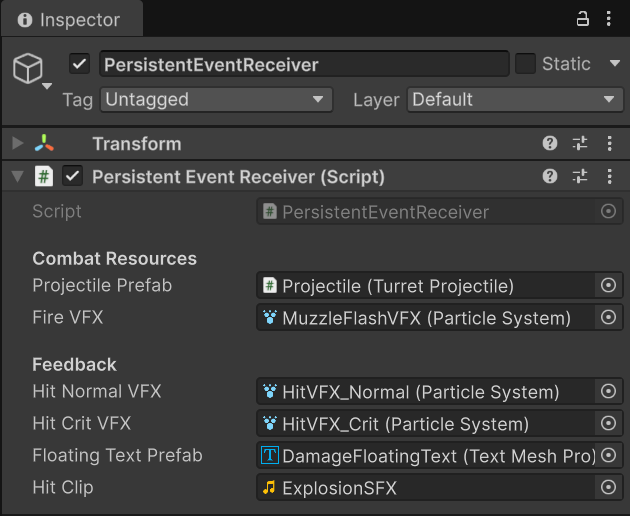

Receiver Setup (PersistentEventReceiver)

Select the PersistentEventReceiver GameObject:

Combat Resources:

• Projectile Prefab: Projectile (Turret Projectile)
• Fire VFX: MuzzleFlashVFX (Particle System)

Feedback:

• Hit Normal VFX: HitVFX_Normal (Particle System)
• Hit Crit VFX: HitVFX_Crit (Particle System)
• Floating Text Prefab: DamageFloatingText (Text Mesh Pro)
• Hit Clip: ExplosionSFX (Audio Clip)

Dynamic References (Hidden): These are injected at runtime by Scene Setup:

• turretA, headA (Turret A references)
• turretB, headB (Turret B references)
• targetDummy, targetRigidbody (Target references)

---

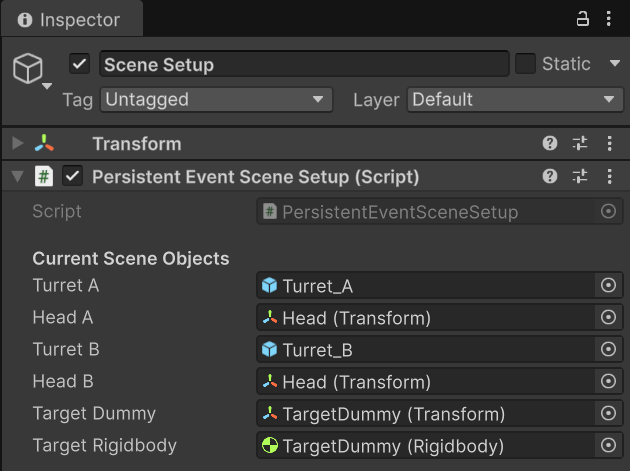

Scene Setup Configuration

Select the Scene Setup GameObject:

Current Scene Objects:

• Turret A: Turret_A (GameObject)
• Head A: Head (Transform) - rotation pivot
• Turret B: Turret_B (GameObject)
• Head B: Head (Transform)
• Target Dummy: TargetDummy (Transform)
• Target Rigidbody: TargetDummy (Rigidbody)

Purpose: On Start(), this script finds the persistent receiver and injects these references, enabling it to control new scene objects.

---

💻 Code Breakdown

📤 PersistentEventRaiser.cs (Sender)

using UnityEngine;
using TinyGiants.GameEventSystem.Runtime;

public class PersistentEventRaiser : MonoBehaviour
{
    [Header("Game Events")]
    [Tooltip("Configuration: Checked 'Persistent Event' in Editor.")]
    [GameEventDropdown] public GameEvent fireAEvent;

    [Tooltip("Configuration: Unchecked 'Persistent Event' in Editor.")]
    [GameEventDropdown] public GameEvent fireBEvent;

    /// <summary>
    /// UI Button: Commands Turret A to fire.
    ///
    /// Since 'fireAEvent' is Persistent, this binding survives scene loads.
    /// Even after reloading, the persistent receiver will still respond.
    /// </summary>
    public void FireTurretA()
    {
        if (fireAEvent == null) return;

        fireAEvent.Raise();
        Debug.Log("<color=cyan>[Raiser] Broadcasting Command: Fire Turret A</color>");
    }

    /// <summary>
    /// UI Button: Commands Turret B to fire.
    ///
    /// Since 'fireBEvent' is NOT Persistent, this binding BREAKS after scene load.
    /// The event is raised, but no one is listening anymore.
    /// </summary>
    public void FireTurretB()
    {
        if (fireBEvent == null) return;

        fireBEvent.Raise();
        Debug.Log("<color=orange>[Raiser] Broadcasting Command: Fire Turret B</color>");
    }
}

Key Points:

• 🎯 Standard Component - Not persistent, recreated each scene
• 📡 Event References - ScriptableObject assets (persistent)
• 🔇 No Lifecycle Awareness - Doesn't know if listeners survived

---

📥 PersistentEventReceiver.cs (Listener - Singleton)

using UnityEngine;
using System.Collections;

public class PersistentEventReceiver : MonoBehaviour
{
    [Header("Combat Resources")]
    [SerializeField] private TurretProjectile projectilePrefab;
    [SerializeField] private ParticleSystem fireVFX;
    // ... other resources ...

    // Runtime-injected scene references
    [HideInInspector] public GameObject turretA;
    [HideInInspector] public Transform headA;
    [HideInInspector] public GameObject turretB;
    [HideInInspector] public Transform headB;
    [HideInInspector] public Transform targetDummy;
    [HideInInspector] public Rigidbody targetRigidbody;

    private bool _isFiringA;
    private bool _isFiringB;

    // Singleton pattern for persistence
    private static PersistentEventReceiver _instance;
    public static PersistentEventReceiver Instance => _instance;

    private void Awake()
    {
        // CRITICAL: DontDestroyOnLoad makes this survive scene transitions
        if (_instance == null)
        {
            _instance = this;
            DontDestroyOnLoad(gameObject);
            Debug.Log("[PersistentReceiver] Initialized with DontDestroyOnLoad.");
        }
        else if (_instance != this)
        {
            // Prevent duplicates if scene reloaded
            Destroy(gameObject);
        }
    }

    private void Update()
    {
        // Control turrets using injected references
        HandleTurretRotation(turretA, headA, ref _isFiringA);
        HandleTurretRotation(turretB, headB, ref _isFiringB);
    }

    /// <summary>
    /// [Event Callback - Persistent Binding]
    /// Bound to 'OnTurretA' with Persistent Event flag checked.
    ///
    /// This method binding SURVIVES scene reload.
    /// After reload, this will still be called when fireAEvent.Raise() executes.
    /// </summary>
    public void OnFireCommandA()
    {
        Debug.Log("<color=cyan>[Receiver] Received Command A. Engaging...</color>");
        _isFiringA = true;
    }

    /// <summary>
    /// [Event Callback - Non-Persistent Binding]
    /// Bound to 'OnTurretB' with Persistent Event flag UNCHECKED.
    ///
    /// This method binding is CLEARED on scene reload.
    /// After reload, this will NEVER be called again (binding is lost).
    /// </summary>
    public void OnFireCommandB()
    {
        Debug.Log("<color=orange>[Receiver] Received Command B. Engaging...</color>");
        _isFiringB = true;
    }

    /// <summary>
    /// Called by PersistentEventSceneSetup on each scene load.
    /// Injects new scene object references into persistent receiver.
    /// </summary>
    public void UpdateSceneReferences(
        GameObject tA, Transform hA,
        GameObject tB, Transform hB,
        Transform target, Rigidbody rb)
    {
        this.turretA = tA;
        this.headA = hA;
        this.turretB = tB;
        this.headB = hB;
        this.targetDummy = target;
        this.targetRigidbody = rb;

        Debug.Log("[PersistentReceiver] Scene references updated.");
    }

    private void HandleTurretRotation(GameObject turret, Transform head, ref bool isFiring)
    {
        if (head == null || targetDummy == null) return;

        // Idle sway or active targeting
        Quaternion targetRot;
        float speed = isFiring ? 10f : 2f;

        if (isFiring)
        {
            // Aim at target
            Vector3 dir = targetDummy.position - head.position;
            dir.y = 0;
            if (dir != Vector3.zero)
                targetRot = Quaternion.LookRotation(dir);
            else
                targetRot = head.rotation;
        }
        else
        {
            // Idle patrol sweep
            float angle = Mathf.Sin(Time.time * 0.5f) * 30f;
            targetRot = Quaternion.Euler(0, 180 + angle, 0);
        }

        head.rotation = Quaternion.Slerp(head.rotation, targetRot, speed * Time.deltaTime);

        // Fire when aimed
        if (isFiring && Quaternion.Angle(head.rotation, targetRot) < 5f)
        {
            PerformFireSequence(turret);
            isFiring = false;
        }
    }

    private void PerformFireSequence(GameObject turret)
    {
        // Spawn muzzle flash, launch projectile, etc.
        // ... (combat logic) ...
    }
}

Key Points:

• 🎯 DontDestroyOnLoad - Survives scene transitions
• 🔀 Singleton Pattern - Only one instance exists globally
• 📍 Dependency Injection - Scene references injected at runtime
• 🎭 Dual Binding - Persistent (A) and non-persistent (B) methods

---

🔧 PersistentEventSceneSetup.cs (Dependency Injector)

using UnityEngine;

public class PersistentEventSceneSetup : MonoBehaviour
{
    [Header("Current Scene Objects")]
    public GameObject turretA;
    public Transform headA;
    public GameObject turretB;
    public Transform headB;
    public Transform targetDummy;
    public Rigidbody targetRigidbody;

    private void Start()
    {
        // Find the persistent receiver (lives in DontDestroyOnLoad scene)
        var receiver = PersistentEventReceiver.Instance;

        if (receiver != null)
        {
            // Inject this scene's object references
            receiver.UpdateSceneReferences(
                turretA, headA,
                turretB, headB,
                targetDummy, targetRigidbody
            );

            Debug.Log("[SceneSetup] Successfully injected scene references " +
                     "into persistent receiver.");
        }
        else
        {
            Debug.LogWarning("[SceneSetup] PersistentEventReceiver not found! " +
                            "Is the demo started correctly?");
        }
    }
}

Key Points:

• 🔧 Runs on Scene Load - Start() executes when scene initializes
• 🔍 Finds Singleton - Accesses persistent receiver via static instance
• 💉 Injects References - Passes new scene objects to persistent logic
• 🏗️ Enables Cross-Scene Control - Bridges persistent logic with transient objects

---

🔑 Key Takeaways

Concept	Implementation
💾 Persistent Event	Checkbox in Behavior Window preserves bindings across scenes
🗑️ Cleanup Behavior	Non-persistent events cleared on scene unload
🔄 DontDestroyOnLoad	Receiver must survive for persistent events to work
💉 Dependency Injection	Pattern for connecting persistent logic with scene objects
🎯 Single Checkbox	One setting determines cross-scene survival

🎓 Design Insight

Persistent events are perfect for:

• Music systems - Background music controller that spans multiple levels
• Inventory managers - Player inventory persists across scene transitions
• Achievement trackers - Global achievement listeners that monitor all scenes
• Analytics systems - Event logging that never gets interrupted
• UI systems - Persistent HUD controllers for health, score, etc.

Architecture Pattern:

[Persistent Layer - DontDestroyOnLoad]
- Global managers
- Event receivers
- Cross-scene logic

[Scene Layer - Recreated]
- Level-specific objects
- Scene setup scripts (dependency injection)
- UI buttons and raisers

This separation enables clean cross-scene architecture without manual re-subscription.

⚠️ Important Considerations

1. Receiver Must Be Persistent: Checking "Persistent Event" only preserves the binding. The receiver GameObject must use DontDestroyOnLoad to survive.
2. Scene References Break: Even though bindings persist, references to destroyed scene objects become null. Use dependency injection to update them.
3. Memory Management: Persistent events stay active until game exit. Be mindful of accumulating bindings in long-running games.
4. Initial Scene Requirement: The persistent receiver must be present in the first loaded scene. If Scene B loads first without the receiver, persistent events won't work.

---

🎯 What's Next?

You've mastered persistent events for cross-scene systems. Now let's explore trigger events for collision-based interactions.

Next Chapter: Learn about collision triggers in 10 Trigger Event

---

📚 Related Documentation

• Game Event Behavior - Complete guide to persistence configuration
• Best Practices - Patterns for cross-scene event architecture
