06 Conditional Event: Visual Logic Builder

📋 Overview

Usually, checking if a door should open requires code like: if (powerOn && (isAdmin || isLucky)). This demo demonstrates the Visual Condition Tree Builder, which lets you create complex, nested validation rules directly in the Editor—removing the need for if/else checks in your scripts.

💡 What You'll Learn

• How to build complex logic trees without code
• How to reference scene objects in conditions
• How to use AND/OR groups for branching logic
• How conditions act as gatekeepers for event callbacks

---

🎬 Demo Scene

Assets/TinyGiants/GameEventSystem/Demo/06_ConditionalEvent/06_ConditionalEvent.unity

Scene Composition

UI Layer (Canvas):

• 🎮 Power Toggle Button - Top left corner

  • "Toggle Power (On)" / "Toggle Power (Off)"
  • Triggers ConditionalEventRaiser.TogglePower()
  • Controls the global SecurityGrid.IsPowerOn state

• 🎮 Four Access Card Buttons - Bottom of screen

  • "Swipe GuestCard" → ConditionalEventRaiser.SwipeGuestCard() (Level 1, Visitor dept)
  • "Swipe StaffCard" → ConditionalEventRaiser.SwipeStaffCard() (Level 3, Management dept)
  • "Swipe AdminCard" → ConditionalEventRaiser.SwipeAdminCard() (Level 5, Director dept)
  • "Attempt Hacking" → ConditionalEventRaiser.AttemptHacking() (Level 0, DarkWeb dept)

Game Logic Layer (Demo Scripts):

• 📤 ConditionalEventRaiser - GameObject with the raiser script

  • Constructs AccessCard objects with different credentials
  • Raises OnAccessCard event for validation
  • Has NO validation logic—just passes data

• 📥 ConditionalEventReceiver - GameObject with the receiver script

  • Contains OpenVault() method with ZERO conditional logic
  • Simply plays door animation when called
  • Assumes if called, all conditions passed

• 🔌 SecurityGrid - Scene object holding system state

  • Public property: IsPowerOn (bool)
  • Condition tree reads this value directly from scene instance

Visual Feedback Layer (Demo Objects):

• 🚪 VaultDoorSystem - Massive double doors
  • Left and right doors slide open/closed
  • Status text displays: "LOCKED" / "ACCESS GRANTED" / "CLOSING..."
  • Steam VFX plays when doors open
• 💡 Power Indicator - Green sphere light
  • Glows when power is ON
  • Dims when power is OFF
• 🖼️ Screen Vignette - Fullscreen overlay
  • Green flash when power turns ON
  • Red flash when power turns OFF

---

🎮 How to Interact

The Logic Gate Challenge

The vault opens ONLY IF this condition evaluates to true:

[⚡ Power ON]  AND  ([🏅 Admin] Level  OR  [🏷️ Valid Department]  OR  [🎲 Lucky Hacker])

Step 1: Enter Play Mode

Press the Play button in Unity. The vault should show "LOCKED" in red.

---

Step 2: Test with Power ON (Correct Setup)

Ensure Power is ON:

• Look at the top-left button: Should show "Toggle Power (On)"
• Look at the power indicator (green sphere): Should be glowing
• Screen vignette flashes green when toggled ON

Click "Swipe StaffCard":

• Credentials: Level 3, Department "Management"
• Logic Path:
  • ✅ Power ON → Pass
  • ❌ Level 3 < 4 → Fail (Admin check)
  • ✅ Department "Management" is in whitelist → Pass
  • Result: One branch passed in OR group
• Outcome: 🟢 ACCESS GRANTED
  • Status text turns green
  • Steam VFX erupts from door base
  • Doors slide open smoothly
  • Doors close after 2 seconds
• Console: [Vault] ACCESS GRANTED to Staff_Alice. Opening doors.

Click "Swipe AdminCard":

• Credentials: Level 5, Department "Director"
• Logic Path:
  • ✅ Power ON → Pass
  • ✅ Level 5 >= 4 → Pass (Admin check succeeds immediately)
  • Result: First condition in OR group passed
• Outcome: 🟢 ACCESS GRANTED

Click "Swipe GuestCard":

• Credentials: Level 1, Department "Visitor"
• Logic Path:
  • ✅ Power ON → Pass
  • ❌ Level 1 < 4 → Fail (Admin check)
  • ❌ Department "Visitor" not in whitelist → Fail
  • 🎲 Random(0-100) > 70 in nested AND group → ~30% chance
  • Result: Most likely all branches fail
• Outcome: 🔴 LOCKED (90% of the time)
  • Vault remains closed
  • Status text stays red
• Console: (No receiver log because condition failed)

---

Step 3: Test with Power OFF (Failure Case)

Click "Toggle Power" (Turn OFF):

• Button text changes to "Toggle Power (Off)"
• Power indicator dims
• Screen vignette flashes RED

Click "Swipe AdminCard":

• Credentials: Level 5 (Admin level)
• Logic Path:
  • ❌ Power OFF → Fail at root AND condition
  • Evaluation stops immediately (short-circuit)
• Outcome: 🔴 LOCKED
  • Even admins cannot bypass the power requirement
  • Receiver method is NEVER called
• Console: [Terminal] Scanning... (but no vault log)

🔐 Security Design

The AND logic at the root ensures that no credential can bypass the power requirement. This demonstrates how condition trees can enforce hard requirements.

---

🏗️ Scene Architecture

The Condition Tree Structure

The vault's access logic is implemented as a visual tree in the Behavior Window:

🟦 ROOT (AND) ➔ Must pass BOTH major branches
│
├─ ⚡ SecurityGrid.IsPowerOn == true      ➔ [Power Status Check]
│
└─ 🟧 Branch 2 (OR) ➔ Must pass AT LEAST ONE below
   │
   ├─ 🏅 Arg.securityLevel >= 4          ➔ [High Clearance]
   ├─ 🏷️ Arg.department ∈ [Mgmt, IT]     ➔ [Dept. Validation]
   ├─ 🎲 Random(0-100) > 90              ➔ [10% Luck Pass]
   │
   └─ 🟦 Nested Group (AND) ➔ Combined low-level check
      ├─ 🔢 Arg.securityLevel >= 1       ➔ [Basic Access]
      └─ 🎲 Random(0-100) > 70           ➔ [30% Luck Pass]

---

Event Definition

Event Name	Type	Purpose
OnAccessCard	GameEvent<AccessCard>	Validates card credentials through condition tree

The AccessCard Data Structure:

[System.Serializable]
public class AccessCard
{
    public string holderName;        // "Staff_Alice", "Admin_Root", etc.
    public int securityLevel;        // 1=Guest, 3=Staff, 5=Admin
    public string department;        // "Management", "IT", "Visitor", etc.
}

---

Behavior Configuration with Condition Tree

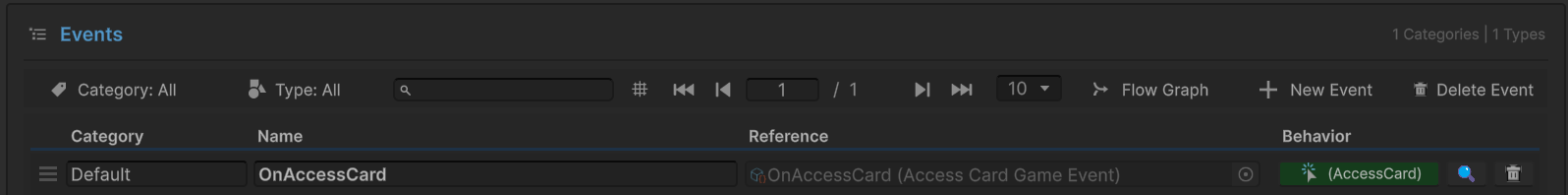

Click the (AccessCard) icon in the Behavior column to open the Behavior Window:

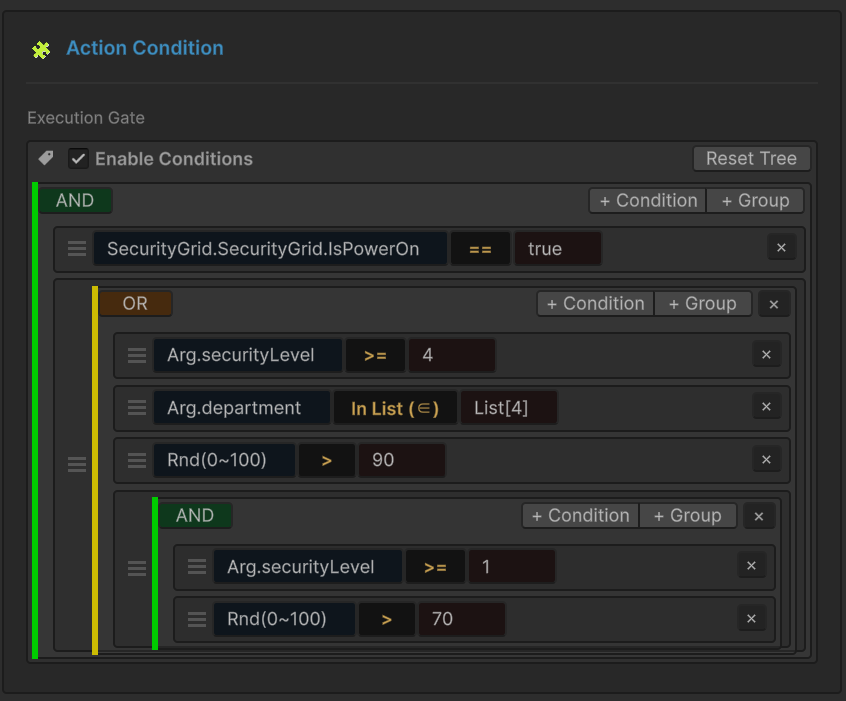

Root AND Group:

• Condition 1: Scene Object Reference
  • Source: SecurityGrid GameObject in scene
  • Property: IsPowerOn (bool)
  • Operator: == (Equals)
  • Target: true
  • Purpose: Hard requirement—power must be ON

Nested OR Group: The OR group provides multiple valid paths to access:

• Condition A: Event Argument Check

  • Source: Arg.securityLevel (int from AccessCard)
  • Operator: >= (Greater Or Equal)
  • Target: 4
  • Purpose: Admin-level credentials

• Condition B: List Membership Check

  • Source: Arg.department (string from AccessCard)
  • Operator: In List (Contained In)
  • Target: Constant List ["Management", "IT"]
  • Purpose: Whitelisted departments

• Condition C: Random Chance

  • Source: Random Value (0-100 range)
  • Operator: > (Greater)
  • Target: 90
  • Purpose: 10% lucky bypass for hackers

• Nested AND Group: Guest Access Logic

  • Sub-condition 1: Arg.securityLevel >= 1 (Valid card)
  • Sub-condition 2: Random(0-100) > 70 (30% chance)
  • Purpose: Guests have lower chance but must have valid card

🎨 Drag & Drop Building

You can build this tree visually in the Behavior Window:

1. Click "+ Condition" to add individual checks
2. Click "+ Group" to add AND/OR containers
3. Drag the ≡ handle to reorder conditions
4. Switch between AND/OR logic by clicking the group label

---

Sender Setup (ConditionalEventRaiser)

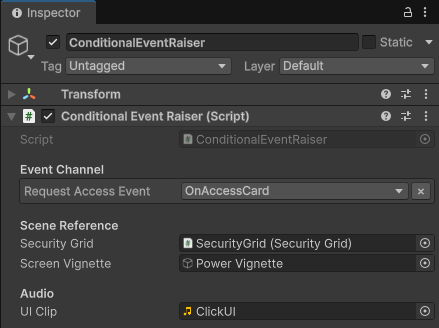

Select the ConditionalEventRaiser GameObject:

Event Channel:

• Request Access Event: OnAccessCard

Scene Reference:

• Security Grid: SecurityGrid GameObject (for power toggle functionality)
• Screen Vignette: UI overlay for visual power feedback

How Cards Work:

// Guest Card (Relies on luck)
SwipeGuestCard() → AccessCard("Guest_Bob", 1, "Visitor")

// Staff Card (Valid department)
SwipeStaffCard() → AccessCard("Staff_Alice", 3, "Management")

// Admin Card (High level)
SwipeAdminCard() → AccessCard("Admin_Root", 5, "Director")

// Hacker (Pure randomness)
AttemptHacking() → AccessCard("Unknown_Hacker", 0, "DarkWeb")

---

Receiver Setup (ConditionalEventReceiver)

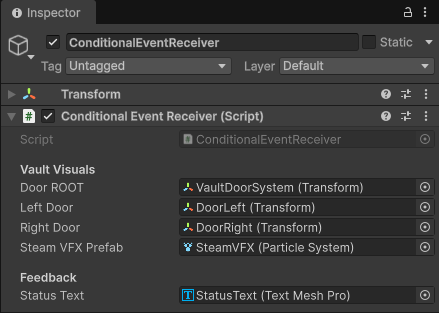

Select the ConditionalEventReceiver GameObject:

Vault Visuals:

• Door ROOT: VaultDoorSystem (Transform)
• Left Door: DoorLeft (Transform) - slides left when opening
• Right Door: DoorRight (Transform) - slides right when opening
• Steam VFX Prefab: Particle system for door opening effect

Feedback:

• Status Text: StatusText (TextMeshPro) - displays access status

Behavior Binding:

• Event: OnAccessCard
• Method: ConditionalEventReceiver.OpenVault(AccessCard card)
• Condition Tree: Acts as gatekeeper (configured above)

🎯 Zero-Logic Receiver

The OpenVault() method contains NO conditional checks. It's called only if the condition tree evaluates to true. This separates validation logic (data layer) from action logic (behavior layer).

---

💻 Code Breakdown

📤 ConditionalEventRaiser.cs (Sender)

using UnityEngine;
using TinyGiants.GameEventSystem.Runtime;

public class ConditionalEventRaiser : MonoBehaviour
{
    [Header("Event Channel")]
    [GameEventDropdown] public GameEvent<AccessCard> requestAccessEvent;

    [Header("Scene Reference")]
    [SerializeField] private SecurityGrid securityGrid;

    public void SwipeGuestCard()
    {
        // Level 1, Dept "Visitor"
        // Fails level check, fails dept check
        // Relies on Random > 70 in nested AND group (~30% chance)
        SendRequest("Guest_Bob", 1, "Visitor");
    }

    public void SwipeStaffCard()
    {
        // Level 3, Dept "Management"
        // Fails level check (3 < 4)
        // Passes department check (Management is whitelisted)
        SendRequest("Staff_Alice", 3, "Management");
    }

    public void SwipeAdminCard()
    {
        // Level 5
        // Passes level check immediately (5 >= 4)
        SendRequest("Admin_Root", 5, "Director");
    }

    public void AttemptHacking()
    {
        // Level 0
        // Pure reliance on Random > 90 (10% chance)
        SendRequest("Unknown_Hacker", 0, "DarkWeb");
    }

    private void SendRequest(string name, int level, string dept)
    {
        if (requestAccessEvent == null) return;

        // Construct the data packet
        AccessCard card = new AccessCard(name, level, dept);

        // Raise the event
        // The condition tree evaluates BEFORE calling the receiver
        requestAccessEvent.Raise(card);

        Debug.Log($"[Terminal] Scanning... Name: {name} | Lv: {level} | Dept: {dept}");
    }
}

Key Points:

• 🎯 No Validation - Sender just creates data and raises event
• 📦 Data Construction - Each button creates a unique credential profile
• 🔇 Zero Logic - No knowledge of what conditions must be met

---

📥 ConditionalEventReceiver.cs (Listener)

using UnityEngine;
using TMPro;
using System.Collections;

public class ConditionalEventReceiver : MonoBehaviour
{
    [Header("Vault Visuals")]
    [SerializeField] private Transform doorROOT;
    [SerializeField] private Transform leftDoor;
    [SerializeField] private Transform rightDoor;
    [SerializeField] private ParticleSystem steamVFXPrefab;

    [Header("Feedback")]
    [SerializeField] private TextMeshPro statusText;

    private Vector3 _leftClosedPos;
    private Vector3 _rightClosedPos;

    private void Start()
    {
        // Store closed positions for animation
        if(leftDoor) _leftClosedPos = leftDoor.localPosition;
        if(rightDoor) _rightClosedPos = rightDoor.localPosition;

        UpdateStatusText("LOCKED", Color.red);
    }

    /// <summary>
    /// [Event Callback - Condition Gated]
    ///
    /// CRITICAL: This method contains NO validation logic!
    ///
    /// The GameEvent Condition Tree acts as the gatekeeper.
    /// If this method executes, it means ALL conditions evaluated to TRUE:
    /// - Power is ON
    /// - AND at least one of: Admin level, Valid dept, or Lucky random
    ///
    /// This separation allows designers to modify access rules in the Editor
    /// without touching code.
    /// </summary>
    public void OpenVault(AccessCard card)
    {
        if (_isOpen) return;

        Debug.Log($"<color=green>[Vault] ACCESS GRANTED to {card.holderName}. " +
                  "Opening doors.</color>");

        StartCoroutine(OpenSequenceRoutine(card.holderName));
    }

    private IEnumerator OpenSequenceRoutine(string name)
    {
        _isOpen = true;
        UpdateStatusText("ACCESS GRANTED", Color.green);

        // Spawn steam VFX
        if (doorROOT != null && steamVFXPrefab != null)
        {
            Vector3 spawnPos = doorROOT.position;
            spawnPos.y -= 2.6f;

            var vfxInstance = Instantiate(steamVFXPrefab, spawnPos, Quaternion.identity);
            vfxInstance.Play();
            Destroy(vfxInstance.gameObject, 2.0f);
        }

        // Open doors (slide outward)
        float t = 0;
        while(t < 1f)
        {
            t += Time.deltaTime * 2f;
            if(leftDoor)
                leftDoor.localPosition = Vector3.Lerp(_leftClosedPos,
                                                      _leftClosedPos + Vector3.left * 1.2f, t);
            if(rightDoor)
                rightDoor.localPosition = Vector3.Lerp(_rightClosedPos,
                                                       _rightClosedPos + Vector3.right * 1.2f, t);
            yield return null;
        }

        yield return new WaitForSeconds(2.0f);
        UpdateStatusText("CLOSING...", Color.yellow);

        // Close doors (slide back)
        t = 0;
        while(t < 1f)
        {
            t += Time.deltaTime * 2f;
            if(leftDoor)
                leftDoor.localPosition = Vector3.Lerp(_leftClosedPos + Vector3.left * 1.2f,
                                                      _leftClosedPos, t);
            if(rightDoor)
                rightDoor.localPosition = Vector3.Lerp(_rightClosedPos + Vector3.right * 1.2f,
                                                       _rightClosedPos, t);
            yield return null;
        }

        _isOpen = false;
        UpdateStatusText("LOCKED", Color.red);
    }

    private void UpdateStatusText(string text, Color col)
    {
        if (statusText)
        {
            statusText.text = text;
            statusText.color = col;
        }
    }
}

Key Points:

• 🎯 Zero Conditional Logic - No if statements checking credentials
• 🔓 Trust-Based Execution - If called, all conditions already passed
• 🎨 Pure Presentation - Just plays door animation and VFX
• 🏗️ Separation of Concerns - Validation (data) vs Action (behavior)

---

🔌 SecurityGrid.cs (Scene State)

using UnityEngine;

public class SecurityGrid : MonoBehaviour
{
    // This public property is read by the condition tree
    public bool IsPowerOn = true;

    public void TogglePower()
    {
        IsPowerOn = !IsPowerOn;

        // Update visuals...
        Debug.Log($"[Environment] Power System is now: {(IsPowerOn ? "ONLINE" : "OFFLINE")}");
    }
}

Key Points:

• 🔌 Public State - IsPowerOn is accessible to condition tree
• 📍 Scene Object - Condition references this specific GameObject instance
• 🎮 Runtime Changes - Toggling power immediately affects condition evaluation

---

🔑 Key Takeaways

Concept	Implementation
🎯 Visual Logic	Build complex conditions without writing code
🌳 Tree Structure	AND/OR groups allow nested branching logic
📍 Scene References	Read properties directly from GameObjects in the scene
🎲 Random Conditions	Built-in random value source for chance-based logic
🔀 Argument Access	Reference event data properties in conditions
🚪 Gatekeeper Pattern	Conditions control whether callbacks execute

🎓 Design Insight

The Visual Condition Tree is perfect for:

• Access control systems - Doors, terminals, restricted areas
• Quest requirements - Check multiple conditions before quest completion
• Buff activation - Only apply effects if prerequisites met
• AI behavior - Decision trees for enemy reactions
• Loot systems - Validate drop conditions (level, luck, location)

By moving logic into data (the condition tree asset), you enable designers to tune gameplay rules without programmer intervention!

---

🎯 What's Next?

You've mastered conditional logic. Now let's explore time-based event control with delays and scheduling.

Next Chapter: Learn about delayed execution in 07 Delayed Event

---

📚 Related Documentation

• Visual Condition Tree - Complete guide to condition builder
• Game Event Behavior - How to configure action conditions
• Best Practices - Patterns for data-driven design
