05 Priority Event: Execution Order Matters

📋 Overview

In game logic, sequence matters. When multiple actions respond to a single event, their execution order can dramatically change the outcome. This demo demonstrates how visual Editor configuration—without any code changes—can turn a weak hit into a devastating critical strike.

💡 What You'll Learn

• Why execution order affects gameplay logic
• How to configure listener priority in the Behavior Window
• The "Buff-Then-Attack" pattern in action
• How to debug order-dependent logic issues

---

🎬 Demo Scene

Assets/TinyGiants/GameEventSystem/Demo/05_PriorityEvent/05_PriorityEvent.unity

Scene Composition

UI Layer (Canvas):

• 🎮 Two Attack Buttons - Located at the bottom of the screen
  • "Raise (Chaotic Hit)" → Triggers PriorityEventRaiser.FireChaoticSequence() (incorrect order)
  • "Raise (Ordered Hit)" → Triggers PriorityEventRaiser.FireOrderedSequence() (correct order)

Game Logic Layer (Demo Scripts):

• 📤 PriorityEventRaiser - GameObject with the raiser script

  • Manages turret aiming and projectile firing
  • Holds references to two events: OnChaoticHit and OnOrderedHit
  • Both events use the same GameEvent<GameObject, DamageInfo> type

• 📥 PriorityEventReceiver - GameObject with the receiver script

  • Has TWO listener methods bound to each event:
    • ActivateBuff - Enables critical damage mode
    • ResolveHit - Calculates damage based on current buff state
  • The order of these methods determines the combat outcome

Visual Feedback Layer (Demo Objects):

• 🎯 SentryTurret - The attacker
  • Changes from grey to gold when buffed
  • Spawns particle aura effect when activated
• 🎯 TargetDummy - The victim capsule
  • Has Rigidbody for knockback physics
• 💥 VFX Systems - Different effects for normal vs critical hits
  • Normal: Small smoke puff
  • Critical: Large explosion + camera shake
• 🏠 Plane - Ground surface

---

🎮 How to Interact

The Experiment Setup

Both buttons fire the same physical projectile, but trigger different events with different listener order configurations.

Step 1: Enter Play Mode

Press the Play button in Unity.

Step 2: Test the Wrong Order (Chaotic Hit)

Click "Raise (Chaotic Hit)" (Left Button):

What Happens:

1. 🎯 Turret aims and fires projectile
2. 💥 Projectile hits target
3. 🔴 PROBLEM: Damage calculated FIRST (ResolveHit executes)
   • Result: -10 weak damage (grey text)
   • Effect: Small smoke VFX
4. ✨ Buff activates SECOND (ActivateBuff executes)
   • Turret turns gold with particle aura
   • Too late! The damage was already calculated

Console Output:

[Receiver] (B) RESOLVE: No buff detected. Weak hit. (Check Priority Order!)
[Receiver] (A) BUFF ACTIVATED! Systems at 300% power.

Result: ❌ Normal hit because buff wasn't active when damage was calculated

---

Step 3: Test the Correct Order (Ordered Hit)

Click "Raise (Ordered Hit)" (Right Button):

What Happens:

1. 🎯 Turret aims and fires projectile
2. 💥 Projectile hits target
3. ✨ CORRECT: Buff activates FIRST (ActivateBuff executes)
   • Turret turns gold with particle aura
   • Internal _isBuffActive flag set to true
4. 🔴 Damage calculated SECOND (ResolveHit executes)
   • Checks buff flag: ACTIVE!
   • Result: CRIT! -50 (orange text, 5x damage multiplier)
   • Effect: Massive explosion VFX + camera shake

Console Output:

[Receiver] (A) BUFF ACTIVATED! Systems at 300% power.
[Receiver] (B) RESOLVE: Buff detected! CRITICAL EXPLOSION.

Result: ✅ Critical hit because buff was active when damage was calculated

---

🏗️ Scene Architecture

The "Buff-Then-Attack" Problem

This is a common pattern in game development:

⚡ Event Raised: OnHit
│
├─ 🥇 1st Action: [Priority 10]
│  └─ 🛡️ ActivateBuff() ➔ Sets `_isBuffActive = true` 🟢
│
└─ 🥈 2nd Action: [Priority 5]
   └─ ⚔️ ResolveHit()  ➔ If (_isBuffActive) ? 💥 CRIT : 🛡️ NORMAL
│
🎯 Result: CRITICAL HIT (Logic resolved with updated state)

The Challenge: If ResolveHit runs before ActivateBuff, the flag hasn't been set yet, resulting in normal damage even though the buff is "attached" to the same event!

---

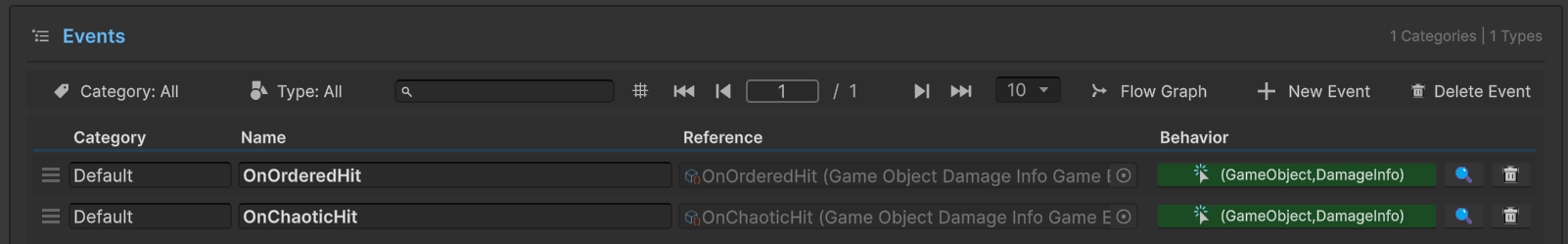

Event Definitions

Both events use the same type but have different behavior configurations:

Event Name	Type	Listener Order
OnChaoticHit	GameEvent<GameObject, DamageInfo>	❌ ResolveHit → ActivateBuff (Wrong)
OnOrderedHit	GameEvent<GameObject, DamageInfo>	✅ ActivateBuff → ResolveHit (Correct)

🔧 Same Type, Different Order

Both events are GameEvent<GameObject, DamageInfo>. The only difference is the listener execution order configured in the Behavior Window.

---

Behavior Configuration Comparison

The critical difference is in the Behavior Window configuration.

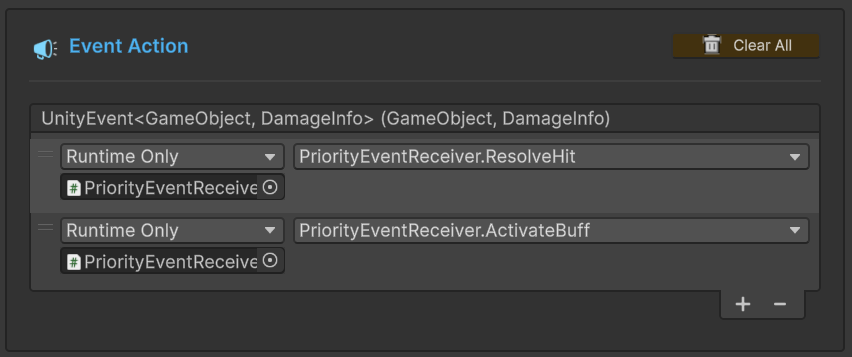

❌ Wrong Order (OnChaoticHit)

Execution Sequence:

1. ResolveHit (Top position - executes first)
2. ActivateBuff (Bottom position - executes second)

Result: Damage calculated before buff applied = Normal Hit

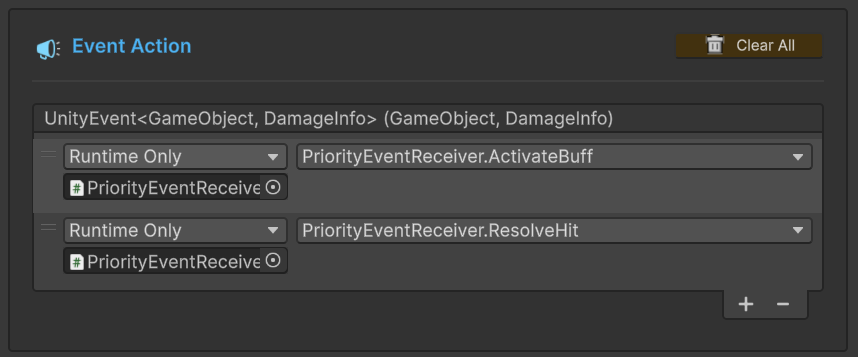

✅ Correct Order (OnOrderedHit)

Execution Sequence:

1. ActivateBuff (Top position - executes first)
2. ResolveHit (Bottom position - executes second)

Result: Buff applied before damage calculated = Critical Hit

🎯 Drag & Drop Reordering

You can change the execution order by dragging the handle (≡) on the left side of each listener in the Behavior Window. This is a visual, no-code way to modify gameplay logic!

---

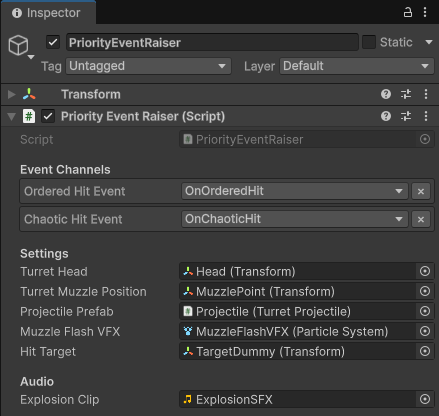

Sender Setup (PriorityEventRaiser)

Select the PriorityEventRaiser GameObject in the Hierarchy:

Event Channels:

• Ordered Hit Event: OnOrderedHit (configured correctly)
  • Tooltip: "Apply Buff → Then Fire"
• Chaotic Hit Event: OnChaoticHit (configured incorrectly)
  • Tooltip: "Fire → Then Apply Buff (Too late!)"

Settings:

• Turret Head: SentryTurret/Head (Transform for aiming)
• Turret Muzzle Position: Head/MuzzlePoint (projectile spawn)
• Projectile Prefab: Projectile visual effect
• Muzzle Flash VFX: Particle system for firing
• Hit Target: TargetDummy (Transform)

---

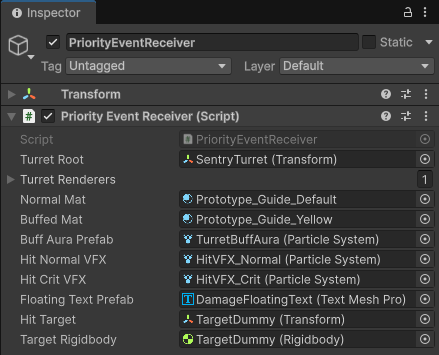

Receiver Setup (PriorityEventReceiver)

Select the PriorityEventReceiver GameObject in the Hierarchy:

Visual Configuration:

• Turret Root: SentryTurret (Transform)
• Turret Renderers: Array of 1 renderer (the turret body)
• Normal Mat: Grey material (default state)
• Buffed Mat: Gold material (buffed state)
• Buff Aura Prefab: Cyan particle effect for buff visualization

VFX Configuration:

• Hit Normal VFX: Small smoke particle system
• Hit Crit VFX: Large explosion particle system
• Floating Text Prefab: Damage number display

Target References:

• Hit Target: TargetDummy (Transform)
• Target Rigidbody: TargetDummy (Rigidbody for knockback)

---

💻 Code Breakdown

📤 PriorityEventRaiser.cs (Sender)

using UnityEngine;
using TinyGiants.GameEventSystem.Runtime;

public class PriorityEventRaiser : MonoBehaviour
{
    [Header("Event Channels")]
    [Tooltip("Configured in Editor: Apply Buff -> Then Fire.")]
    [GameEventDropdown] public GameEvent<GameObject, DamageInfo> orderedHitEvent;

    [Tooltip("Configured in Editor: Fire -> Then Apply Buff (Too late!).")]
    [GameEventDropdown] public GameEvent<GameObject, DamageInfo> chaoticHitEvent;

    private GameEvent<GameObject, DamageInfo> _pendingEvent;

    /// <summary>
    /// Button A: Starts attack sequence that triggers the "Ordered" event.
    /// </summary>
    public void FireOrderedSequence()
    {
        if (orderedHitEvent == null) return;
        _pendingEvent = orderedHitEvent;
        _isAttacking = true;
        Debug.Log("[Sender] Initiating ORDERED attack sequence...");
    }

    /// <summary>
    /// Button B: Starts attack sequence that triggers the "Chaotic" event.
    /// </summary>
    public void FireChaoticSequence()
    {
        if (chaoticHitEvent == null) return;
        _pendingEvent = chaoticHitEvent;
        _isAttacking = true;
        Debug.Log("[Sender] Initiating CHAOTIC attack sequence...");
    }

    private void FireProjectile()
    {
        // ... Projectile creation logic ...

        shell.Initialize(hitTarget.position, 15f, () =>
        {
            DamageInfo info = new DamageInfo(10f, false, DamageType.Physical,
                                            hitTarget.position, "Sentry Turret");

            // Raise whichever event was queued (Ordered or Chaotic)
            if(_pendingEvent != null)
                _pendingEvent.Raise(this.gameObject, info);

            Debug.Log($"[Sender] Impact! Event '{_pendingEvent?.name}' Raised.");
        });
    }
}

Key Points:

• 🎯 Same Sender Code - Both events use identical raise logic
• 📦 Event Selection - _pendingEvent determines which event fires
• 🔇 Order Agnostic - Sender has no knowledge of listener order

---

📥 PriorityEventReceiver.cs (Listener)

using UnityEngine;
using System.Collections;

public class PriorityEventReceiver : MonoBehaviour
{
    [SerializeField] private Renderer[] turretRenderers;
    [SerializeField] private Material buffedMat;
    [SerializeField] private ParticleSystem buffAuraPrefab;

    private bool _isBuffActive; // The critical state flag

    /// <summary>
    /// [Listener Method A]
    /// Activates the buff state and visual effects.
    ///
    /// PRIORITY IMPACT:
    /// - If configured ABOVE ResolveHit: Buff applies BEFORE damage calculation → CRITICAL HIT
    /// - If configured BELOW ResolveHit: Buff applies AFTER damage calculation → NORMAL HIT
    /// </summary>
    public void ActivateBuff(GameObject sender, DamageInfo args)
    {
        _isBuffActive = true; // <-- THE CRITICAL STATE CHANGE

        // Visual feedback: Gold material + particle aura
        foreach (var r in turretRenderers)
            if(r) r.material = buffedMat;

        if (buffAuraPrefab != null)
        {
            _activeBuffEffect = Instantiate(buffAuraPrefab, turretRoot.position,
                                           Quaternion.identity);
            _activeBuffEffect.transform.SetParent(turretRoot);
            _activeBuffEffect.Play();
        }

        Debug.Log("<color=cyan>[Receiver] (A) BUFF ACTIVATED! " +
                  "Systems at 300% power.</color>");
    }

    /// <summary>
    /// [Listener Method B]
    /// Calculates damage and spawns VFX based on CURRENT buff state.
    ///
    /// LOGIC: Checks _isBuffActive at the EXACT MOMENT of execution.
    /// For correct behavior, ActivateBuff must execute BEFORE this method.
    /// </summary>
    public void ResolveHit(GameObject sender, DamageInfo args)
    {
        float finalDamage = args.amount;
        bool isCrit = false;
        ParticleSystem vfxToPlay;

        // Check the flag at THIS EXACT MOMENT
        if (_isBuffActive)
        {
            // CRITICAL PATH
            finalDamage *= 5f; // 5x damage multiplier
            isCrit = true;
            vfxToPlay = hitCritVFX;

            StartCoroutine(ShakeCameraRoutine(0.2f, 0.4f));
            Debug.Log("<color=green>[Receiver] (B) RESOLVE: Buff detected! " +
                      "CRITICAL EXPLOSION.</color>");
        }
        else
        {
            // NORMAL PATH
            vfxToPlay = hitNormalVFX;
            Debug.Log("<color=red>[Receiver] (B) RESOLVE: No buff detected. " +
                      "Weak hit. (Check Priority Order!)</color>");
        }

        // Spawn appropriate VFX
        if (vfxToPlay != null)
        {
            var vfx = Instantiate(vfxToPlay, args.hitPoint, Quaternion.identity);
            vfx.Play();
            Destroy(vfx.gameObject, 2.0f);
        }

        // Apply physics and UI feedback
        ApplyPhysicsKnockback(args, isCrit);
        ShowFloatingText(finalDamage, isCrit, hitTarget.position);

        StartCoroutine(ResetRoutine());
    }

    private IEnumerator ResetRoutine()
    {
        yield return new WaitForSeconds(1.5f);
        _isBuffActive = false; // Reset for next attack
        // ... Reset visuals ...
    }
}

Key Points:

• 🎯 State Dependency - ResolveHit behavior depends entirely on _isBuffActive flag
• ⏱️ Timing Critical - The flag must be set BEFORE damage calculation
• 🔀 Order-Dependent Logic - Same code, different results based on execution order
• 🎨 Visual Feedback - Different VFX, text size, and effects for each path

---

🔑 Key Takeaways

Concept	Implementation
🎯 Execution Order	Listener order directly affects gameplay logic
🎨 Visual Configuration	Drag-and-drop in Behavior Window—no code changes
🔀 State Management	Order matters when listeners modify shared state
🐛 Debug Pattern	Console logs help identify order-related bugs
🔄 Gameplay Design	Enable/disable order controls combo systems, buff stacking, etc.

🎓 Design Insight

Execution order is critical for:

• Buff systems - Apply modifiers before calculating effects
• Combo chains - Validate conditions before triggering next action
• Shield mechanics - Check absorption before applying damage
• Trigger sequences - Ensure prerequisites are met before executing dependent logic

Always test both orders to ensure your logic works as intended!

---

🎯 What's Next?

You've mastered execution order. Now let's explore conditional event triggering to make events smarter.

Next Chapter: Learn about conditional logic in 06 Conditional Event

---

📚 Related Documentation

• Game Event Behavior - Detailed guide to listener configuration
• Best Practices - Patterns for order-dependent logic
• Listening Strategies - Advanced callback patterns
